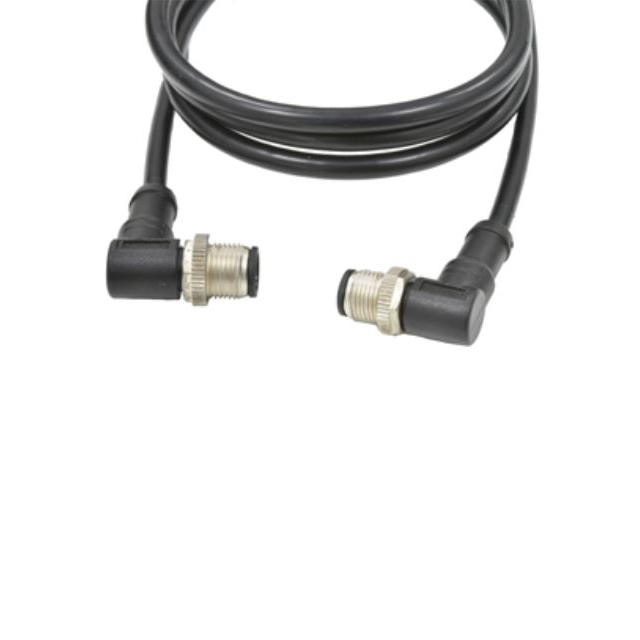

M12D04MR-12DMR-SBA05

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, D CODE, METAL, 4A, 04 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCREW THRE

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, D CODE, METAL, 4A, 04 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCREW THRE

Technical Specifications

Parameters and characteristics for this part

Specification	M12D04MR-12DMR-SBA05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	D
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	D
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Receptacle, Right Angle
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

Part	Shielding	1st Connector Gender	2nd Connector Number of Positions Loaded	1st Connector Shell Size - Insert	Ingress Protection	1st Connector Type	2nd Connector Number of Positions	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Usage	2nd Connector Type	2nd Connector Mounting Type	Cable Material	2nd Connector Orientation	Length [x]	Length [x]	2nd Connector Gender	Cable Type	1st Connector Number of Positions	1st Connector Orientation	Assembly Configuration	Color	2nd Connector Shell Size - Insert
Amphenol LTW M12D04MR-12DFR-SBA05	Unshielded	Male Pins	All	M12	IP68 IP69K	Receptacle Right Angle	4	All	Free Hanging (In-Line)	Industrial Environments	Plug Right Angle	Free Hanging (In-Line)	Polyurethane (PUR)	D	1.64 ft	500 mm	Female Sockets	Round	4	D	Standard	Black	M12
Amphenol LTW M12D04MR-12DMR-SBA05	Unshielded	Male Pins	All	M12	IP68 IP69K	Receptacle Right Angle	4	All	Free Hanging (In-Line)	Industrial Environments	Receptacle Right Angle	Free Hanging (In-Line)	Polyurethane (PUR)	D	1.64 ft	500 mm		Round	4	D	Standard	Black	M12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.64' (500.00mm)
