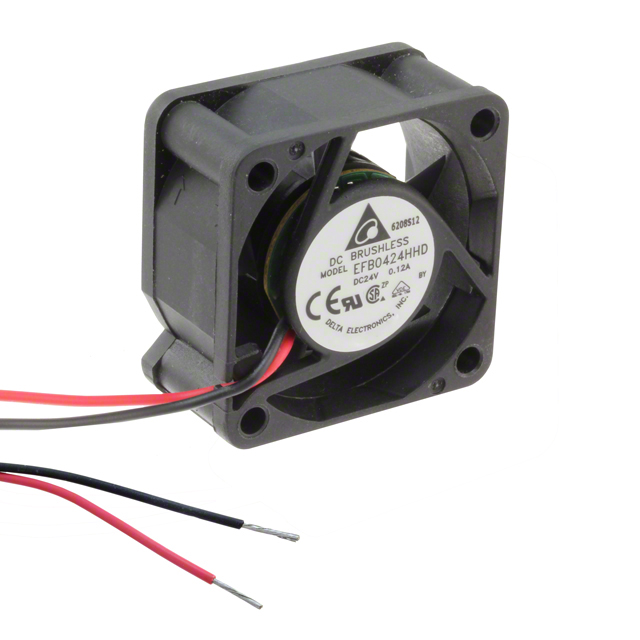

EFB0424HHD

Active

Delta Electronics

FAN AXIAL 40X20MM 24VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 40X20MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Weight	Weight	Lifetime @ Temp.	RPM	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Width [y]	Noise	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Air Flow	Air Flow	Features	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Material - Blade	Voltage - Rated	Fan Type	Approval Agency	Bearing Type	Termination
Delta Electronics EFB0424VHD-F00	2.16 W	33.11 g	0.073 lb	70000 Hrs	9000 RPM	40 mm	Square	40 mm	20 mm	32.5 dB	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.09 A	10.1 CFM	0.283 m³/min	Locked Rotor Protection Speed Sensor (Tach)	27.6 VDC	14 VDC	103.6 Pa	0.416 in H2O	Plastic	24 VDC	Tubeaxial	CE CSA UL VDE	Ball	3 Wire Leads
Delta Electronics EFB0424VHD	2.16 W	33.11 g	0.073 lb	70000 Hrs	9000 RPM	40 mm	Square	40 mm	20 mm	32.5 dB	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.09 A	10.1 CFM	0.283 m³/min		27.6 VDC	14 VDC	103.6 Pa	0.416 in H2O	Plastic	24 VDC	Tubeaxial	CE CSA UL VDE	Ball	2 Wire Leads
Delta Electronics EFB0424HHD	1.68 W	33.11 g	0.073 lb	70000 Hrs	8200 RPM	40 mm	Square	40 mm	20 mm	30.5 dB	Plastic	70 °C	70 °C	-10 °C	-10 °C	70 mA	9.4 CFM	0.263 m³/min		27.6 VDC	14 VDC	88.2 Pa	0.354 in H2O	Plastic	24 VDC	Tubeaxial	CE CSA UL VDE	Ball	2 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 9.4 CFM (0.263m³/min) 2 Wire Leads
