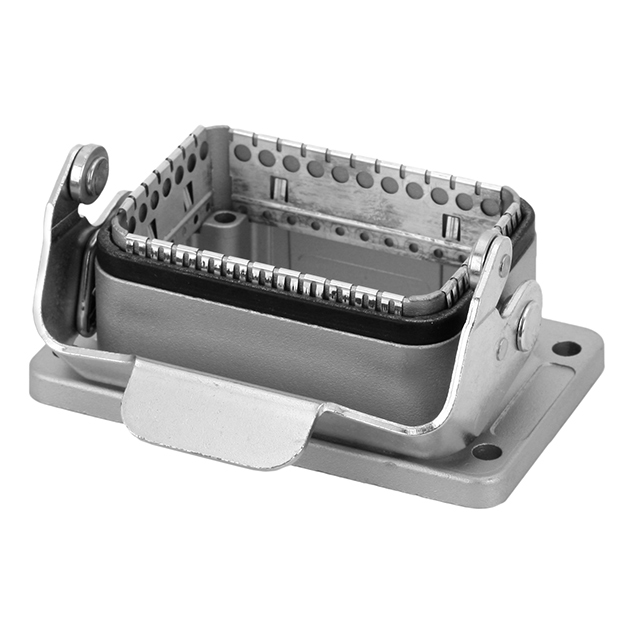

C14611F0060018

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE6

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE6

Technical Specifications

Parameters and characteristics for this part

Specification	C14611F0060018

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	EMC Coating
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	80 mm
Size / Dimension [x]	3.15 in
Size / Dimension [y]	1.89 in
Size / Dimension [y]	48 mm
Size / Dimension [z]	33.3 mm
Size / Dimension [z]	1.311 "
Style	Bottom Entry

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Housing Material	Housing Finish	Ingress Protection	Housing Color	Connector Type	Style	Size / Dimension [y]	Size / Dimension [z]
Amphenol Tuchel Industrial C14611F0069018	30.3 mm	1.193 "	48 mm	3.15 in	80 mm	1.89 in	125 °C	-40 °C	Locking Clip (1) on Base Bottom	Aluminum Die Cast	EMC Coating	IP65 - Dust Tight Water Resistant	Gray	Base - Panel Mount	Bottom Entry
Amphenol Tuchel Industrial C14611F0060018		1.311 "		3.15 in	80 mm	1.89 in	125 °C	-40 °C	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	EMC Coating	IP65 - Dust Tight Water Resistant	Gray	Base - Panel Mount	Bottom Entry	48 mm	33.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry E6 IP65 - Dust Tight, Water Resistant
