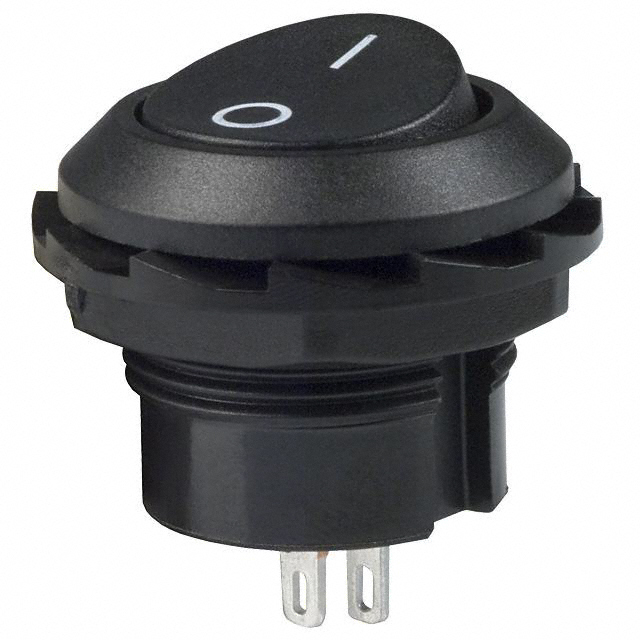

RR3130ABLKBLKFS

Active

E-Switch

ROCKER SWITCH, ON-OFF, SPST, NON ILLUMINATED, PANEL MOUNT, BLACK, RR 3130 SERIES

Search across all available documentation for this part.

Active

E-Switch

ROCKER SWITCH, ON-OFF, SPST, NON ILLUMINATED, PANEL MOUNT, BLACK, RR 3130 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	RR3130ABLKBLKFS

Actuator Marking	O -
Actuator Type	Round
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	6000 Cycles
Mechanical Life	20000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	18.2 mm
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Switch Function	Actuator Marking	Panel Cutout Dimensions [diameter]	Mechanical Life	Actuator Type	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Circuit	Current Rating (Amps)	Electrical Life	Voltage Rating - AC
E-Switch RR3130ABLKBLKFS	On-Off	O -	18.2 mm	20000 Cycles	Round	Panel Mount Threaded Body with Nut	Solder Lug	65 °C	0 °C	Black	SPST	10 A	6000 Cycles	125 V
E-Switch RR3130ABLKREDFS	On-Off	O -	18.2 mm	20000 Cycles	Round	Panel Mount Threaded Body with Nut	Solder Lug	65 °C	0 °C	Red	SPST	10 A	6000 Cycles	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Threaded Body with Nut
