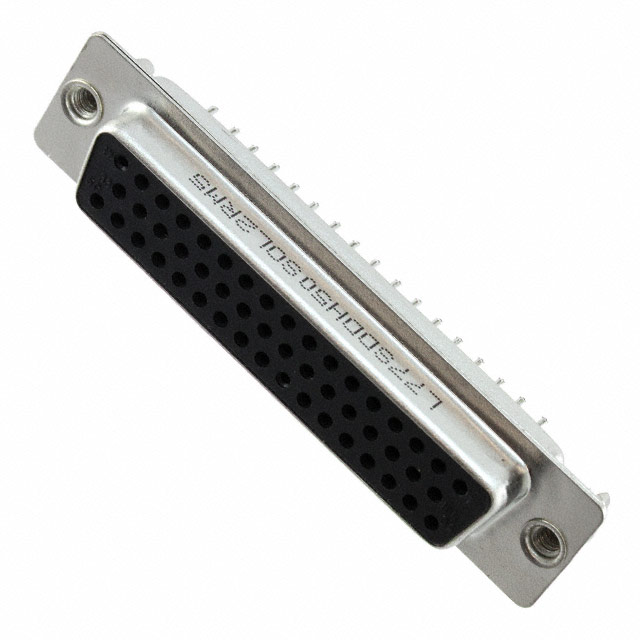

L77SDDH50SOL2RM5

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 50POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77SDDH50SOL2RM5

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 50POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDDH50SOL2RM5

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	250 VDC

L77SDDH50 Series

Part	Contact Form	Connector Style	Connector Type	Number of Positions	Current Rating (Amps)	Dielectric Material	Material Flammability Rating	Mounting Type	Color	Termination	Contact Type	Flange Feature	Contact Finish	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Rows	Contact Material	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L77SDDH50SOL2RM8C309	Stamped	D-Sub	Receptacle Female Sockets	50	3 A	Thermoplastic Glass Filled	UL94 V-0	Through Hole	Black	Solder	Signal	Board Side (4-40) Mating Side Female Screwlock (4-40)	Gold	5	0.76 Ám	30 Áin	-55 °C	125 °C	250 VDC	3	Phosphor Bronze
Amphenol ICC (Commercial Products) L77SDDH50SVFC309	Stamped	D-Sub	Receptacle Female Sockets	50	3 A	Thermoplastic Glass Filled	UL94 V-0	Free Hanging (In-Line)	Black		Signal	Cable Side (4-40) Mating Side Female Screwlock (4-40)	Gold	5			-55 °C	105 ░C	250 VDC	3	Brass	Flash	20 AWG
Amphenol ICC (Commercial Products) L77SDDH50SC309	Stamped	D-Sub	Receptacle Female Sockets	50	3 A	Thermoplastic Glass Filled	UL94 V-0	Free Hanging (In-Line)	Black		Signal	Cable Side	Gold	5	0.76 Ám	30 Áin	-55 °C	125 °C	250 VDC	3	Phosphor Bronze
Amphenol ICC (Commercial Products) L77SDDH50SOL2RM5	Stamped	D-Sub	Receptacle Female Sockets	50	3 A	Thermoplastic Glass Filled	UL94 V-0	Through Hole	Black	Solder	Signal	4-40 Board Side	Gold	5			-55 °C	125 °C	250 VDC	3	Phosphor Bronze	Flash
Amphenol ICC (Commercial Products) L77SDDH50SOL2RM8G	Stamped	D-Sub	Receptacle Female Sockets	50	3 A	Thermoplastic Glass Filled	UL94 V-0	Through Hole	Black	Solder	Signal	Board Side (4-40) Mating Side Female Screwlock (4-40)	Gold	5			-55 °C	125 °C	250 VDC	3	Phosphor Bronze	Flash
Amphenol ICC (Commercial Products) L77SDDH50S	Stamped	D-Sub	Receptacle Female Sockets	50	3 A	Thermoplastic Glass Filled	UL94 V-0	Free Hanging (In-Line)	Black		Signal	Cable Side	Gold	5			-55 °C	125 °C	250 VDC	3	Phosphor Bronze	Flash
Amphenol ICC (Commercial Products) L77SDDH50SOL2RM8	Stamped	D-Sub	Receptacle Female Sockets	50	3 A	Thermoplastic Glass Filled	UL94 V-0	Through Hole	Black	Solder	Signal	Board Side (4-40) Mating Side Female Screwlock (4-40)	Gold	5			-55 °C	125 °C	250 VDC	3	Phosphor Bronze	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.57
		10	$ 3.24
		25	$ 3.07
		40	$ 3.00
		80	$ 2.85
		240	$ 2.51

Description

General part information

L77SDDH50 Series

50 Position D-Sub Receptacle, Female Sockets Connector
