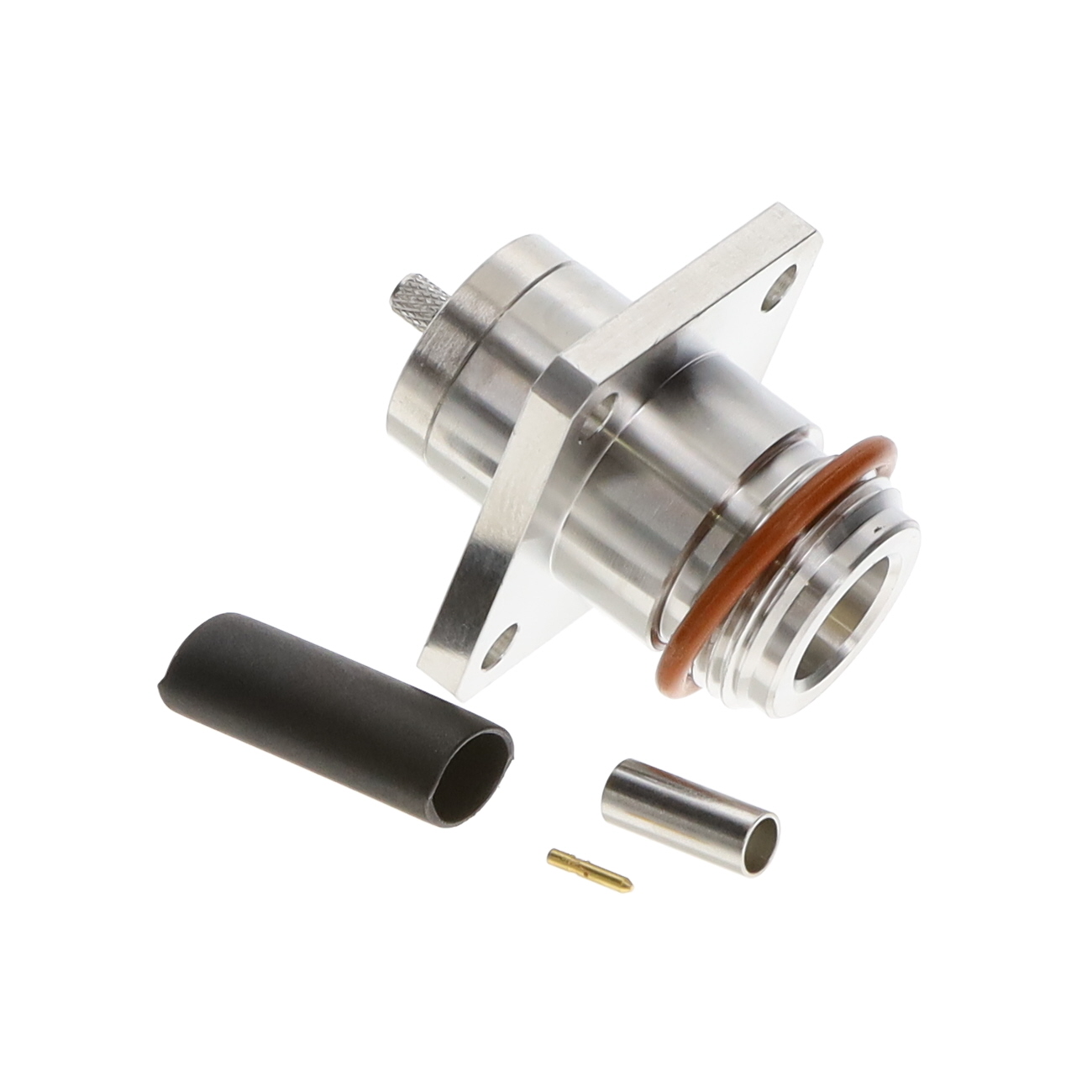

172173-14

Active

Amphenol RF

CONN TYPE N 0HZ TO 11GHZ 50OHM CRIMP ST FLANGE MOUNT RCP GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN TYPE N 0HZ TO 11GHZ 50OHM CRIMP ST FLANGE MOUNT RCP GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	172173-14

Body Finish	White Bronze
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass, Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Heat Shrink, 1 Contact, 1 Gasket, 1 Connector
Ingress Protection	IP68 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Style	Impedance	Number of Ports	Housing Color	Shield Termination	Dielectric Material	Connector Type	Center Contact Material	Frequency - Max [Max]	Ingress Protection	Includes	Mounting Feature	Cable Group	Center Contact Plating	Body Material	Mating Cycles	Body Finish
Amphenol RF 172173-14	-65 ░C	165 °C	Solder	N Type	50 Ohms	1	Silver	Crimp	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Brass Phosphor Bronze	11 GHz	IP68 - Dust Tight Waterproof	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Heat Shrink	Flange	188 188A 316 LMR-100 M17/119-RG174 RG-174	Gold	Brass	500	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
