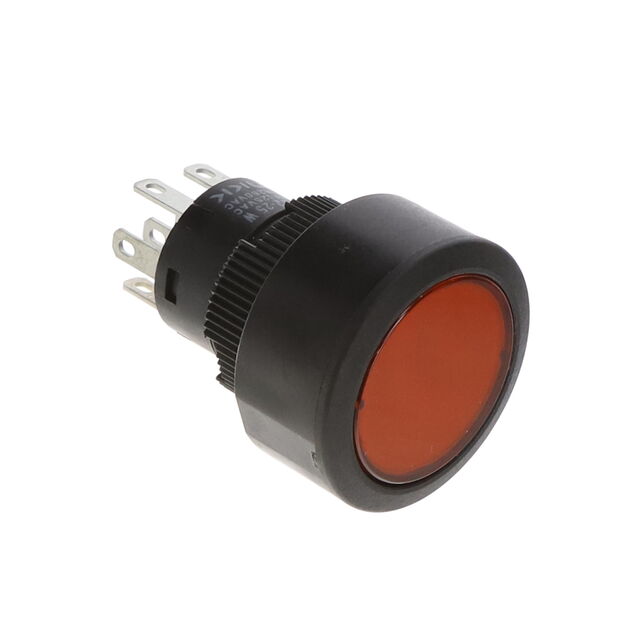

YB225CWCKW01-5C12-CB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB225CWCKW01-5C12-CB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB225CWCKW01-5C12-CB

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB225C Series

Part	Actuator Type	Color - Actuator/Cap	Features	Mechanical Life	Actuator Marking	Mounting Type	Current Rating (Amps)	Electrical Life	Circuit	Ingress Protection	Voltage Rating - AC	Type	Voltage Rating - DC	Termination Style	Termination Style	Termination Style	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Illumination Type, Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches YB225CWCKG01-N-JB	Button Flush Round	Clear	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	0.4 VA	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	28 V	Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	70 °C	-25 °C	22 mm
NKK Switches YB225CWCPW01-5F24-FB	Button Flush Round	Green	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Illuminated Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	50 °C	-25 °C	22 mm	24 V	Green LED
NKK Switches YB225CWSSW01	Plunger for Cap		Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	70 °C	-25 °C				21 mm	21 mm
NKK Switches YB225CWCKW01-N-CB	Button Flush Round	Red	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	70 °C	-25 °C	22 mm
NKK Switches YB225CWCKW01-5C-JS	Button Flush Round	Silver	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Illuminated Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	50 °C	-25 °C	22 mm	1.9 VDC	LED Red
NKK Switches YB225CWCKW01-5C-CB	Button Flush Round	Red	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Illuminated Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	50 °C	-25 °C	22 mm	1.9 VDC	LED Red
NKK Switches YB225CWCKW01-5D12-JB	Button Flush Round	Clear	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Illuminated Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	50 °C	-25 °C	22 mm	12 VDC	Amber LED
NKK Switches YB225CWCKW01/CUL-N-CB	Button Flush Round	Red	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	70 °C	-25 °C	22 mm
NKK Switches YB225CWCSG01	Plunger for Cap		Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	0.4 VA	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	28 V	Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	70 °C	-25 °C	22 mm
NKK Switches YB225CWCKW01-6F-JS	Button Flush Round	Silver	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Illuminated Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	50 °C	-25 °C	22 mm	3.3 VDC	Green LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.69
		10	$ 30.66
		100	$ 26.20
Newark	Each	1	$ 61.27
		5	$ 54.64
		10	$ 52.78
		25	$ 49.86
		50	$ 46.41
		100	$ 41.11
		250	$ 36.87

Description

General part information

YB225C Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
