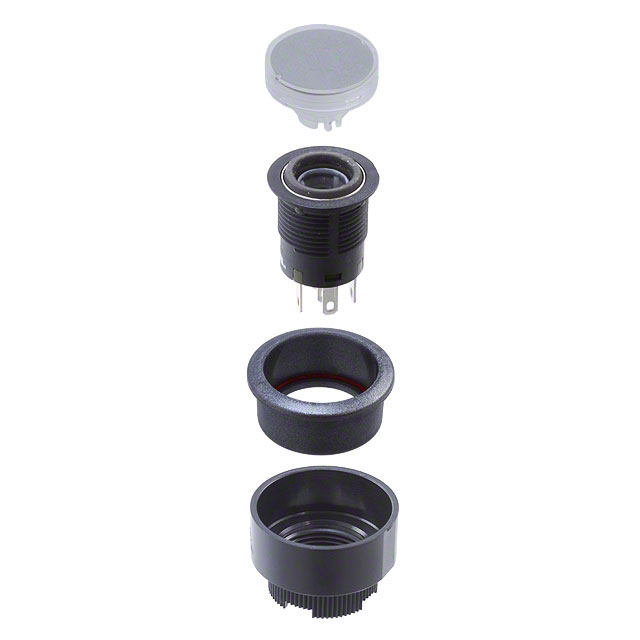

YB225CWCKW01-5C-JS
ActiveNKK Switches
SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YB225CWCKW01-5C-JS
ActiveNKK Switches
SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YB225CWCKW01-5C-JS |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | DPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Features | Tactile Feedback |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 1.9 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
YB225C Series
| Part | Actuator Type | Color - Actuator/Cap | Features | Mechanical Life | Actuator Marking | Mounting Type | Current Rating (Amps) | Electrical Life | Circuit | Ingress Protection | Voltage Rating - AC | Type | Voltage Rating - DC | Termination Style | Termination Style | Termination Style | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Illumination Type, Color | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Button Flush Round | Clear | Tactile Feedback | 1000000 Cycles | No Marking | Panel Mount Front | 0.4 VA | 100000 Cycles | DPDT | IP65 - Dust Tight Water Resistant | 28 V | Standard | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 70 °C | -25 °C | 22 mm | ||||
NKK Switches | Button Flush Round | Green | Tactile Feedback | 1000000 Cycles | No Marking | Panel Mount Front | 3 A | 100000 Cycles | DPDT | IP65 - Dust Tight Water Resistant | 125 V | Illuminated Standard | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 50 °C | -25 °C | 22 mm | 24 V | Green LED | ||
NKK Switches | Plunger for Cap | Tactile Feedback | 1000000 Cycles | No Marking | Panel Mount Front | 3 A | 100000 Cycles | DPDT | IP65 - Dust Tight Water Resistant | 125 V | Standard | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 70 °C | -25 °C | 21 mm | 21 mm | ||||
NKK Switches | Button Flush Round | Red | Tactile Feedback | 1000000 Cycles | No Marking | Panel Mount Front | 3 A | 100000 Cycles | DPDT | IP65 - Dust Tight Water Resistant | 125 V | Standard | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 70 °C | -25 °C | 22 mm | ||||
NKK Switches | Button Flush Round | Silver | Tactile Feedback | 1000000 Cycles | No Marking | Panel Mount Front | 3 A | 100000 Cycles | DPDT | IP65 - Dust Tight Water Resistant | 125 V | Illuminated Standard | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 50 °C | -25 °C | 22 mm | 1.9 VDC | LED Red | ||
NKK Switches | Button Flush Round | Red | Tactile Feedback | 1000000 Cycles | No Marking | Panel Mount Front | 3 A | 100000 Cycles | DPDT | IP65 - Dust Tight Water Resistant | 125 V | Illuminated Standard | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 50 °C | -25 °C | 22 mm | 1.9 VDC | LED Red | ||
NKK Switches | Button Flush Round | Clear | Tactile Feedback | 1000000 Cycles | No Marking | Panel Mount Front | 3 A | 100000 Cycles | DPDT | IP65 - Dust Tight Water Resistant | 125 V | Illuminated Standard | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 50 °C | -25 °C | 22 mm | 12 VDC | Amber LED | ||
NKK Switches | Button Flush Round | Red | Tactile Feedback | 1000000 Cycles | No Marking | Panel Mount Front | 3 A | 100000 Cycles | DPDT | IP65 - Dust Tight Water Resistant | 125 V | Standard | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 70 °C | -25 °C | 22 mm | ||||
NKK Switches | Plunger for Cap | Tactile Feedback | 1000000 Cycles | No Marking | Panel Mount Front | 0.4 VA | 100000 Cycles | DPDT | IP65 - Dust Tight Water Resistant | 28 V | Standard | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 70 °C | -25 °C | 22 mm | |||||
NKK Switches | Button Flush Round | Silver | Tactile Feedback | 1000000 Cycles | No Marking | Panel Mount Front | 3 A | 100000 Cycles | DPDT | IP65 - Dust Tight Water Resistant | 125 V | Illuminated Standard | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 50 °C | -25 °C | 22 mm | 3.3 VDC | Green LED |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
YB225C Series
Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
