GR3081A
ActiveEssentra Access Solutions

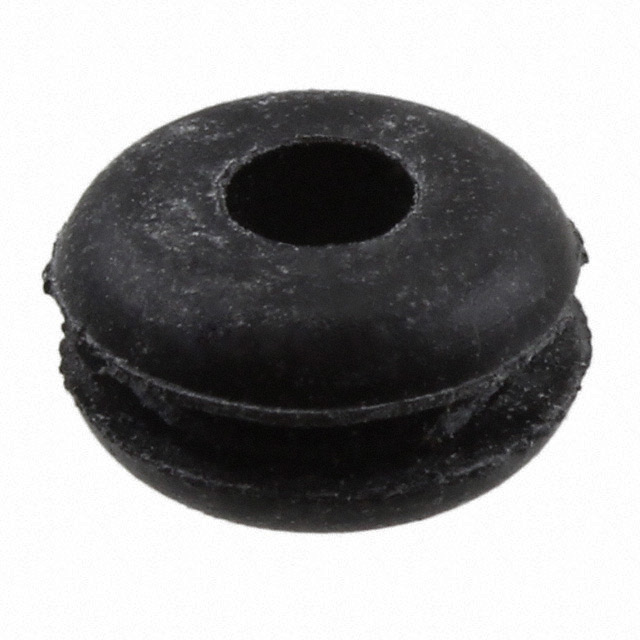

GROMMET, OPEN, 4.8 MM, 11.1 MM, SBR (STYRENE BUTADIENE) 60 DUROMETER, 7.9 MM, 1.6 MM
Deep-Dive with AI
Search across all available documentation for this part.
GR3081A
ActiveEssentra Access Solutions
GROMMET, OPEN, 4.8 MM, 11.1 MM, SBR (STYRENE BUTADIENE) 60 DUROMETER, 7.9 MM, 1.6 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GR3081A |
|---|---|
| Bushing, Grommet Type | Grommet |
| Color | Black |
| Diameter - Inside [diameter] | 0.188 in |
| Diameter - Inside [diameter] | 4.78 mm |
| For Use With/Related Products | Wires, Cable |
| Material | 60 Durometer |
| Material | Styrene-Butadiene Rubber (SBR) |
| Panel Cutout Dimensions [diameter] | 0.313 in |
| Panel Cutout Dimensions [diameter] | 7.95 mm |
| Panel Thickness | 0.063 in |
| Panel Thickness | 1.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.25 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.10 | |||
Description
General part information
GR3081 Series
Circular - 0.313" (7.95mm) Grommet 0.188" (4.78mm) Black
