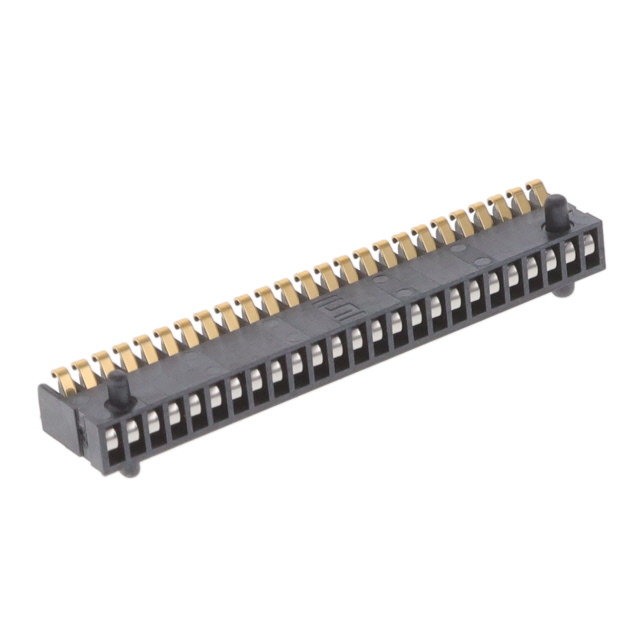

SIBF-25-F-S-AD - Samtec-SIBF-25-F-S-AD Connector Headers and PCB Receptacles Conn One Piece Interface M 25 POS 1.27mm Solder RA Side Entry SMD Tube

SIBF-25-F-S-AD

Active
Samtec Inc.

CONN ONE PIECE INTERFACE M 25 POS 1.27MM SOLDER RA SIDE ENTRY SMD TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet.050" One-Piece Interface+2
SIBF-25-F-S-AD - Samtec-SIBF-25-F-S-AD Connector Headers and PCB Receptacles Conn One Piece Interface M 25 POS 1.27mm Solder RA Side Entry SMD Tube

SIBF-25-F-S-AD

Active
Samtec Inc.

CONN ONE PIECE INTERFACE M 25 POS 1.27MM SOLDER RA SIDE ENTRY SMD TUBE

Deep-Dive with AI

DocumentsDatasheet.050" One-Piece Interface+2

Technical Specifications

Parameters and characteristics for this part

SpecificationSIBF-25-F-S-AD
Connector TypeCompression Contact, Non-Gendered
Contact FinishGold
Contact Finish ThicknessFlash
MaterialPhosphor Bronze
Mounting TypeSurface Mount
Number of Contacts25
Number of Rows1
Pitch [x]0.05 in
Pitch [x]1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 4.01
25$ 3.63
50$ 3.37
100$ 3.21
DigikeyTube 1$ 4.01
25$ 3.63
50$ 3.37
100$ 3.21
500$ 2.99
NewarkEach 1$ 4.87
10$ 4.65
100$ 3.90
500$ 3.31
1000$ 2.80
2500$ 2.58
5000$ 2.52

Description

General part information

SIBF-25 Series

25 Position Spring Compression Contact, Non-Gendered Connector Surface Mount
