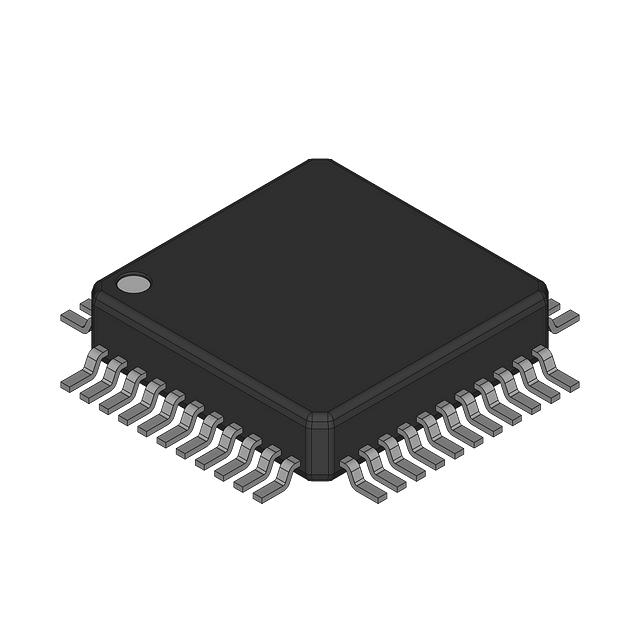

B505CA4EMCAXP
ActiveInfineon Technologies
IC MCU 8BIT 32KB OTP 44MQFP
Deep-Dive with AI
Search across all available documentation for this part.
B505CA4EMCAXP
ActiveInfineon Technologies
IC MCU 8BIT 32KB OTP 44MQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B505CA4EMCAXP |
|---|---|
| Connectivity | UART/USART, EBI/EMI, CANbus |
| Core Processor | C500 |
| Core Size | 8-Bit |
| Data Converters [custom] | 8 |
| Data Converters [custom] | 10 |
| Mounting Type | Surface Mount |
| Number of I/O | 34 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Oscillator Type | External |
| Package / Case | 44-QFP |
| Peripherals | POR, PWM, WDT |
| Program Memory Size | 32 KB |
| Program Memory Type | OTP |
| RAM Size | 1.25 K |
| Speed | 20 MHz |
| Supplier Device Package | PG-MQFP-44-2 |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 31 | $ 9.78 | |
Description
General part information
B505CA4EM Series
C500 C5xx/C8xx Microcontroller IC 8-Bit 20MHz 32KB (32K x 8) OTP PG-MQFP-44-2
Documents
Technical documentation and resources
No documents available
