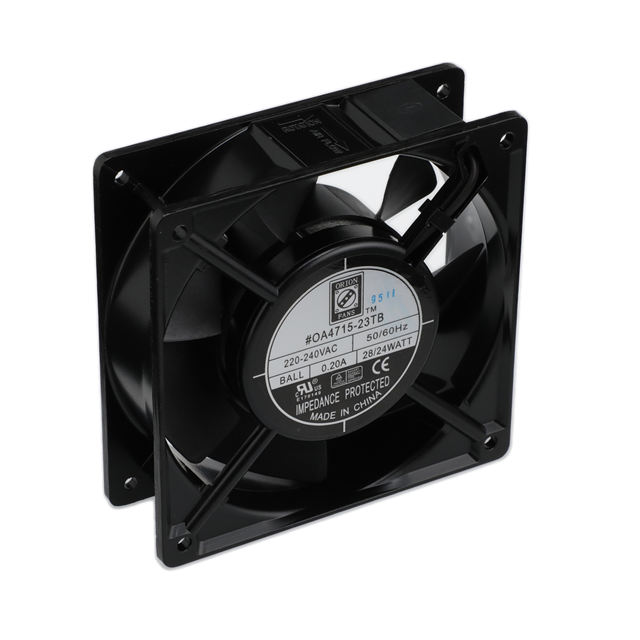

OA4715-23TB

Active

Orion Fans

AC AXIAL FAN, 230V, SQUARE, 120 MM, 38 MM, BALL BEARING, 110 CFM

Search across all available documentation for this part.

Active

Orion Fans

AC AXIAL FAN, 230V, SQUARE, 120 MM, 38 MM, BALL BEARING, 110 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	OA4715-23TB

Air Flow	110 CFM
Air Flow	3.08 mł/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	0.23 A
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	44 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	24 W
RPM	3000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	92.2 Pa
Static Pressure	0.37 in H2O
Termination	2 Terminals
Voltage - Rated	230 VAC
Width [y]	38 mm

Part	Noise	Material - Blade	Termination	Width [y]	Bearing Type	Material - Frame	Approval Agency	Voltage - Rated	Current Rating (Amps)	Air Flow	Air Flow	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Power (Watts)	RPM	Size / Dimension [y]	Size / Dimension [x]	Fan Type
Orion Fans OA4715-23TB	44 dB	Polybutylene Terephthalate (PBT)	2 Terminals	38 mm	Ball	Aluminum	cURus TUV	230 VAC	0.23 A	110 CFM	3.08 mł/min	92.2 Pa	0.37 in H2O	70 °C	70 °C	-10 °C	-10 °C	60000 Hrs	24 W	3000 RPM	120 mm	120 mm	Tubeaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.48
Newark	Each	1	$ 14.67

General part information

Fan Tubeaxial 230VAC Square - 120mm L x 120mm H Ball 110.0 CFM (3.08m³/min) 2 Terminals
