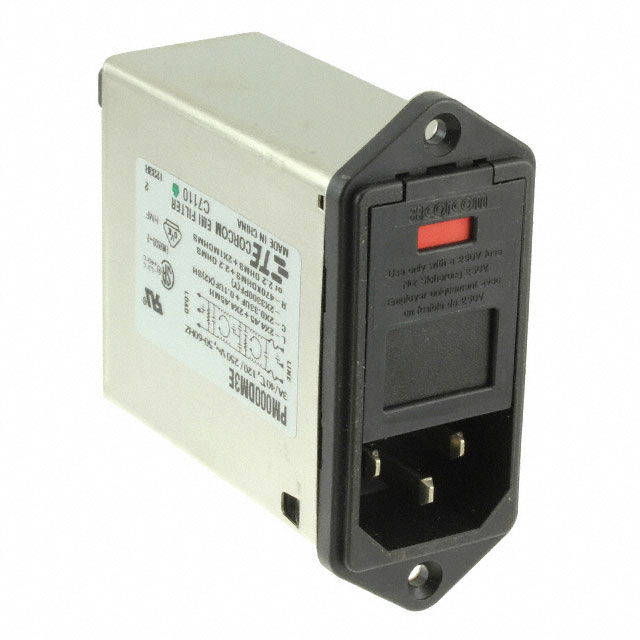

PM000DM3E
ActiveTE Connectivity AMP Connectors
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
PM000DM3E
ActiveTE Connectivity AMP Connectors
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PM000DM3E | PM00 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 3 A | 3 - 10 A |
| Current Rating - Filter | 3 A | 3 - 10 A |
| Features | Shielded | Shielded, Conversion Clip |
| Filter Type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused | Fuse Holder, Twin Fused, Fuse Holder |
| Mounting Type | Panel Mount, Flange | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 28.45 mm | 28.45 mm |
| Panel Cutout Dimensions [y] | 55.91 mm | 55.91 mm |
| Termination | 0.187 " | 0.187 " |
| Termination | 4.7 mm | 4.7 mm |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 120 VAC | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 27 | $ 39.66 | |
PM00 Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Termination | Termination | Termination | Filter Type | Mounting Type | Connector Type | Fuse Holder, Drawer | Voltage Rating - Appliance Inlet [Max] | Voltage Rating - Appliance Inlet [Min] | Current Rating - Appliance Inlet | Connector Style | Accomodates a Fuse | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Approval Agency | Current Rating - Filter | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors PM000DMXE | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial | Flange, Panel Mount | Receptacle, Male Blades - Module | Fuse Holder, Twin Fused | 250 VAC | 120 VAC | 10 A | IEC 320-C14 | 55.91 mm | 28.45 mm | CSA, UL, VDE | 10 A | Shielded | |
TE Connectivity AMP Connectors PM000SM6E | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial | Flange, Panel Mount | Receptacle, Male Blades - Module | Fuse Holder | 250 VAC | 120 VAC | 6 A | IEC 320-C14 | 55.91 mm | 28.45 mm | CSA, UL, VDE | 6 A | Conversion Clip, Shielded | |
TE Connectivity AMP Connectors PM000DM3E | 0.187 " | 4.7 mm | Quick Connect | Filtered (EMI, RFI) - Commercial | Flange, Panel Mount | Receptacle, Male Blades - Module | Fuse Holder, Twin Fused | 250 VAC | 120 VAC | 3 A | IEC 320-C14 | 55.91 mm | 28.45 mm | CSA, UL, VDE | 3 A | Shielded |
Description
General part information
PM00 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
