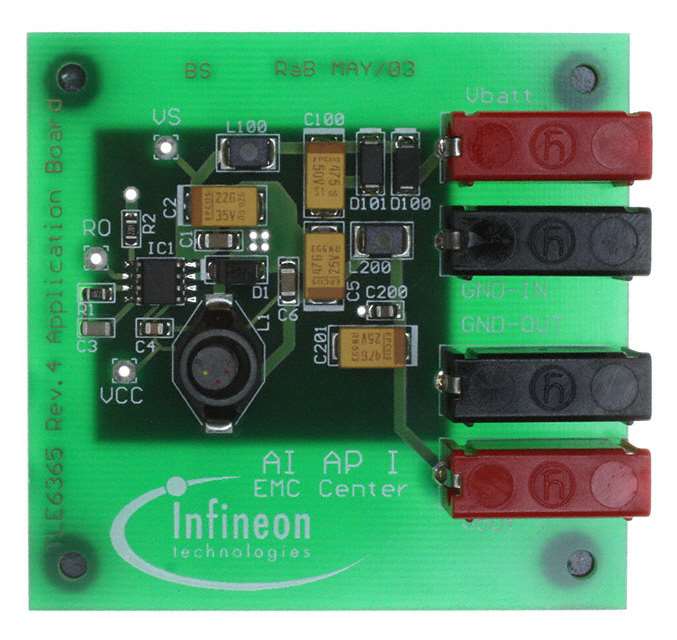

DEMOBOARD TLE 6365 G

Obsolete

Infineon Technologies

BOARD DEMO FOR TLE 6365 REV.4

Search across all available documentation for this part.

Obsolete

Infineon Technologies

BOARD DEMO FOR TLE 6365 REV.4

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Board Type	Regulator Topology	Outputs and Type	Outputs and Type	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Output Type	Output Configuration	Number of Outputs	Grade	Current - Output	Voltage - Input (Max) [Max]	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Supplier Device Package	Synchronous Rectifier	Qualification	Mounting Type	Function	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Output (Min/Fixed)
Infineon Technologies DEMOBOARD TLE 6365 G	Board(s)	Fully Populated	Buck	Non-Isolated	1	DC/DC Step Down	35 V	5 V	TLE6365
Infineon Technologies TLE6365GXUMA1										1.81 mOhm	Positive	1	Automotive	400 mA	36 V	Buck	150 °C	-40 °C	4.5 V	PG-DSO-8-16		AEC-Q100	Surface Mount	Step-Down	8-SOIC	3.9 mm	0.154 in	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 139.42

General part information

TLE6365 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources

No documents available
