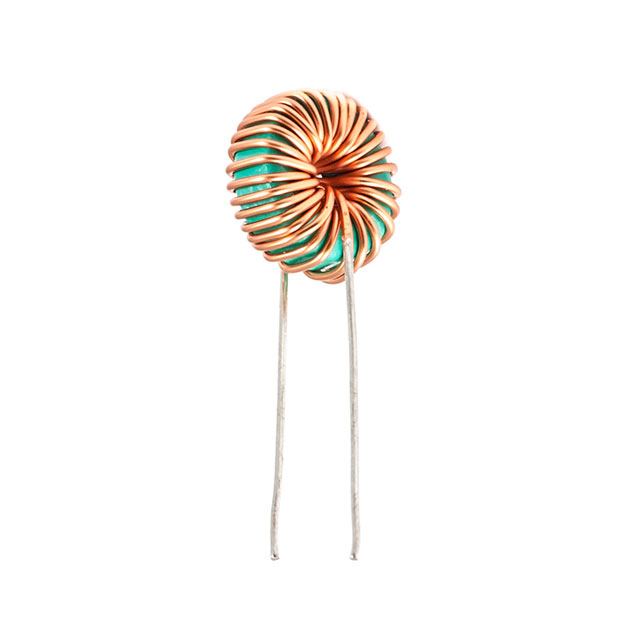

SN8S-300

Active

KEMET

COMMON MODE CHOKE, 26UH, 2A

Search across all available documentation for this part.

Active

KEMET

COMMON MODE CHOKE, 26UH, 2A

Technical Specifications

Parameters and characteristics for this part

Part	Number of Lines	Inductance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height (Max) [Max]	Height (Max) [Max]	Package / Case	Package / Case	Filter Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
KEMET SN8S-50P2	2	72 µH	-25 °C	105 ░C	Through Hole	2 A	75 mOhm	0.748 in	19 mm	10.5 mm	0.413 in	4 Lead	Vertical	Power Line
KEMET SN8S-400JA	2	46 µH	-25 °C	105 ░C	Through Hole	2 A	52 mOhm			18 mm	0.709 in	2 Lead	Horizontal	Power Line	0.709 in	0.472 "	18 mm	12 mm
KEMET SN8S-400	2	46 µH	-25 °C	105 ░C	Through Hole	2 A	52 mOhm			17.5 mm	0.689 in	2 Lead	No Base Vertical	Power Line
KEMET SN8S-300	2	26 µH	-25 °C	105 ░C	Through Hole	2 A	42 mOhm			17.5 mm	0.689 in	2 Lead	No Base Vertical	Power Line

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 2A DCR 42mOhm
