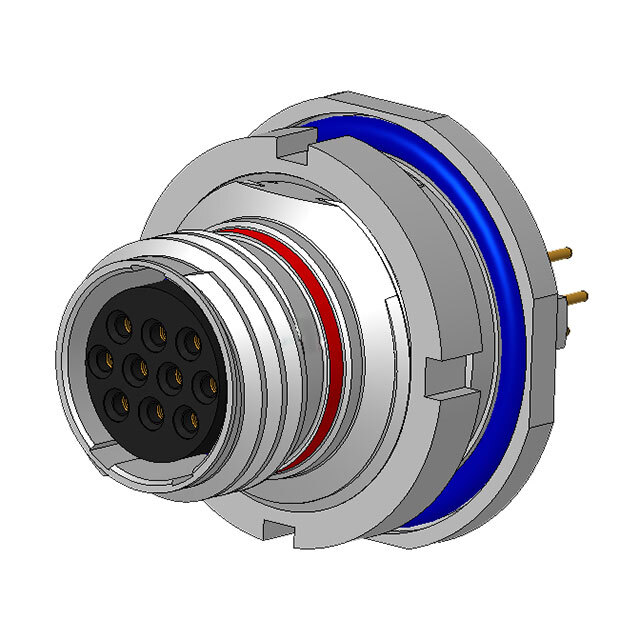

2M801-038-07M7-10SA
ActiveAmphenol Aerospace Operations
CONN RCPT FMALE 10POS GOLD SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2M801-038-07M7-10SA
ActiveAmphenol Aerospace Operations
CONN RCPT FMALE 10POS GOLD SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2M801-038-07M7-10SA | 2M801-038 Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 5 A | 5 A |
| Insert Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 10 | 10 - 26 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Electroless Nickel | Electroless Nickel, Durmalon™ |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 26 |
| Shell Size - Insert | - | 10 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
2M801-038 Series
CONN RCPT FMALE 10POS GOLD SLDR
| Part | Mounting Type | Connector Type | Shell Finish | Insert Material | Contact Finish - Mating | Primary Material | Shielding | Number of Positions | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Mounting Feature | Color | Termination | Orientation | Contact Material | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations 2M801-038-07M7-10SA | Panel Mount, Through Hole | Receptacle, Female Sockets | Electroless Nickel | Polyphenylene Sulfide (PPS) | Gold | Metal | Shielded | 10 | 5 A | -65 ░C | 150 °C | Aluminum | Bulkhead - Front Side Nut | Silver | Solder | A | Copper Alloy | ||
Amphenol Aerospace Operations 2M801-038-07MT10-26SA | Panel Mount, Through Hole | Receptacle, Female Sockets | Durmalon™ | Polyphenylene Sulfide (PPS) | Gold | Metal | Shielded | 26 | 5 A | -65 ░C | 150 °C | Aluminum | Bulkhead - Front Side Nut | Solder | A | Copper Alloy | 26 | 10 | |
Amphenol Aerospace Operations 2M801-038-07MT10-26PA | Panel Mount, Through Hole | Male Pins, Receptacle | Durmalon™ | Polyphenylene Sulfide (PPS) | Gold | Metal | Shielded | 26 | 5 A | -65 ░C | 150 °C | Aluminum | Bulkhead - Front Side Nut | Solder | A | Copper Alloy | 26 | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 173.15 | |
| 10 | $ 158.53 | |||
Description
General part information
2M801-038 Series
10 Position Circular Connector Receptacle, Female Sockets Solder
Documents
Technical documentation and resources
