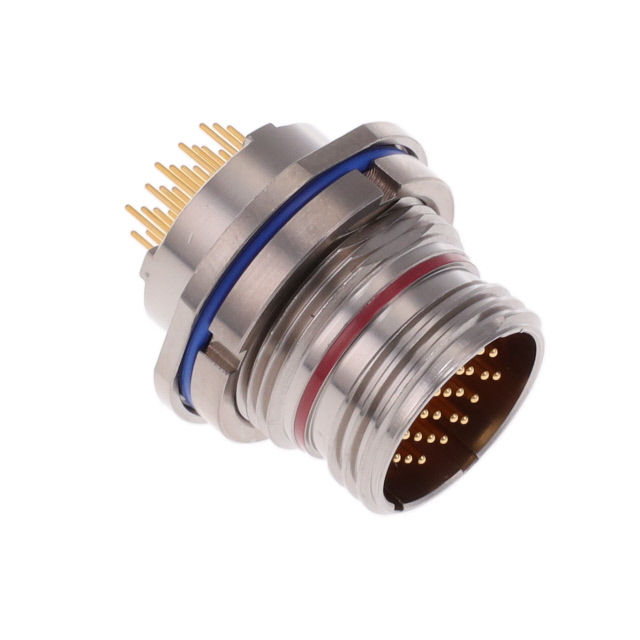

2M801-038-07MT10-26PA

Active

Amphenol Aerospace Operations

CONN RCPT MALE 26POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 26POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2M801-038-07MT10-26PA	2M801-038 Series

Color	-	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 A
Insert Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	26	10 - 26
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	A	A
Primary Material	Metal	Metal
Shell Finish	Durmalon™	Electroless Nickel, Durmalon™
Shell Material	Aluminum	Aluminum
Shell Size - Insert [Max]	26	26
Shell Size - Insert [Min]	10	10
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT FMALE 10POS GOLD SLDR

Part	Mounting Type	Connector Type	Shell Finish	Insert Material	Contact Finish - Mating	Primary Material	Shielding	Number of Positions	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Mounting Feature	Color	Termination	Orientation	Contact Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Amphenol Aerospace Operations 2M801-038-07M7-10SA	Panel Mount, Through Hole	Receptacle, Female Sockets	Electroless Nickel	Polyphenylene Sulfide (PPS)	Gold	Metal	Shielded	10	5 A	-65 ░C	150 °C	Aluminum	Bulkhead - Front Side Nut	Silver	Solder	A	Copper Alloy
Amphenol Aerospace Operations 2M801-038-07MT10-26SA	Panel Mount, Through Hole	Receptacle, Female Sockets	Durmalon™	Polyphenylene Sulfide (PPS)	Gold	Metal	Shielded	26	5 A	-65 ░C	150 °C	Aluminum	Bulkhead - Front Side Nut		Solder	A	Copper Alloy	26	10
Amphenol Aerospace Operations 2M801-038-07MT10-26PA	Panel Mount, Through Hole	Male Pins, Receptacle	Durmalon™	Polyphenylene Sulfide (PPS)	Gold	Metal	Shielded	26	5 A	-65 ░C	150 °C	Aluminum	Bulkhead - Front Side Nut		Solder	A	Copper Alloy	26	10
