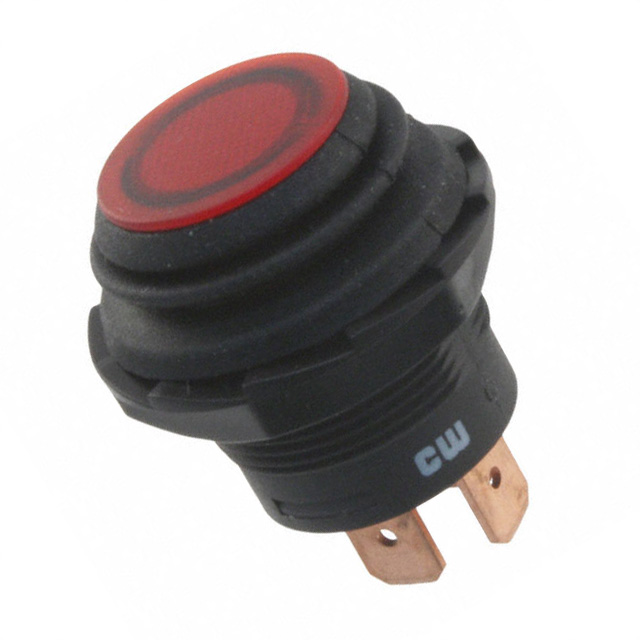

GPB553B2L01BR

Active

CW Industries

STRAIGHT SPST 10A PUSHBUTTON SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GPB553B2L01BR

Active

CW Industries

STRAIGHT SPST 10A PUSHBUTTON SWITCHES ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GPB553B2L01BR

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Electrical Life	20000 Steps
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Illuminated, Standard
Voltage Rating - DC	14 V

GPB553B Series

Part	Current Rating (Amps)	Switch Function	Actuator Marking	Color - Actuator/Cap	Termination Style	Electrical Life	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Ingress Protection	Illumination Voltage (Nominal)	Illumination Type, Color
CW Industries GPB553B201BB	10 A	Off-On	No Marking	Black	Quick Connect - 0.250" (6.3mm)	20000 Steps	Button Round	-25 °C	85 °C	Standard	Panel Mount Front	SPST	22 mm	14 V	IP65 - Dust Tight Water Resistant
CW Industries GPB553B2L01BR	10 A	Off-On	No Marking	Red	Quick Connect - 0.250" (6.3mm)	20000 Steps	Button Round	-25 °C	85 °C	Illuminated Standard	Panel Mount Front	SPST	22 mm	14 V	IP65 - Dust Tight Water Resistant	12 VDC	LED Red
CW Industries GPB553B2L01BW	10 A	Off-On	No Marking	White	Quick Connect - 0.250" (6.3mm)	20000 Steps	Button Round	-25 °C	85 °C	Illuminated Standard	Panel Mount Front	SPST	22 mm	14 V	IP65 - Dust Tight Water Resistant	12 VDC	LED White
CW Industries GPB553B2L01BG	10 A	Off-On	No Marking	Green	Quick Connect - 0.250" (6.3mm)	20000 Steps	Button Round	-25 °C	85 °C	Illuminated Standard	Panel Mount Front	SPST	22 mm	14 V	IP65 - Dust Tight Water Resistant	12 VDC	Green LED
CW Industries GPB553B2L01BA	10 A	Off-On	No Marking	Amber	Quick Connect - 0.250" (6.3mm)	20000 Steps	Button Round	-25 °C	85 °C	Illuminated Standard	Panel Mount Front	SPST	22 mm	14 V	IP65 - Dust Tight Water Resistant	12 VDC	Amber LED
CW Industries GPB553B201BW	10 A	Off-On	No Marking	White	Quick Connect - 0.250" (6.3mm)	20000 Steps	Button Round	-25 °C	85 °C	Standard	Panel Mount Front	SPST	22 mm	14 V	IP65 - Dust Tight Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.08
		10	$ 8.18
		25	$ 7.84
		50	$ 7.45
		100	$ 7.15
		250	$ 6.72
		500	$ 6.21
		1000	$ 6.00
LCSC	Piece	1	$ 14.25
		200	$ 5.69
		500	$ 5.50

Description

General part information

GPB553B Series

Pushbutton Switch SPST Standard, Illuminated Panel Mount, Front
