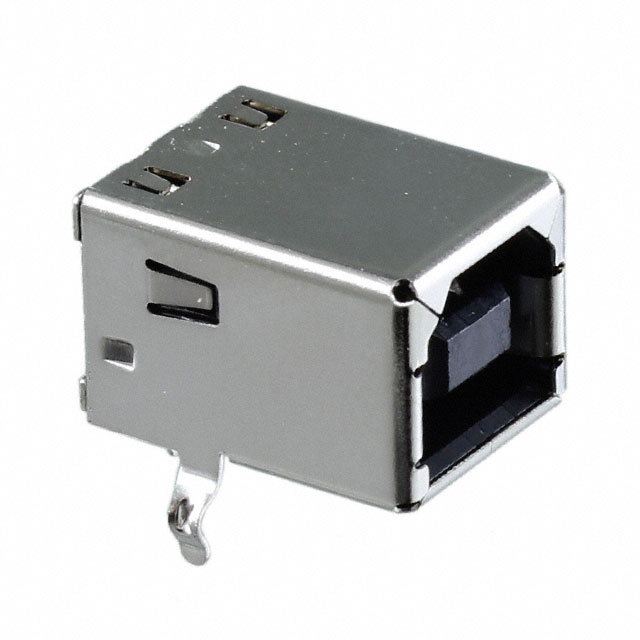

UE27BC54130

Active

Amphenol ICC (Commercial Products)

CONN RCPT USB2.0 TYPEB 4POS R/A

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN RCPT USB2.0 TYPEB 4POS R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UE27BC54130	UE27 Series

Connector Type	USB-B	USB-A (USB TYPE-A), USB-B
Contact Finish	Gold	Gold
Current Rating (Amps)	1.5 A	1 - 1.5 A
Gender	Receptacle	Receptacle
Insulation Color	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	1500	1500
Mounting Feature	Horizontal	Vertical, Horizontal
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Contacts [custom]	4	4
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shell/Shielding Material	Steel, Copper Alloy	Copper Alloy, Steel
Shielding	Shielded	Shielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder
Voltage - Rated	30 VAC	30 VAC

CONN RCPT USB2.0 TYPEA 4POS VERT

Part	Voltage - Rated	Shell/Shielding Material	Contact Finish	Number of Contacts [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Mating Cycles	Mounting Type	Current Rating (Amps)	Number of Ports	Shielding	Mounting Feature	Termination	Connector Type	Material Flammability Rating	Gender	Specifications
Amphenol ICC (Commercial Products) UE27AE54100	30 VAC	Copper Alloy	Gold	4	85 °C	-40 °C	Black	1500	Through Hole	1.5 A	1	Shielded	Vertical	Solder	USB-A (USB TYPE-A)	UL94 V-0	Receptacle	USB 2.0
Amphenol ICC (Commercial Products) UE27BC54130	30 VAC	Copper Alloy, Steel	Gold	4	85 °C	-40 °C	Black	1500	Through Hole, Right Angle	1.5 A	1	Shielded	Horizontal	Solder	USB-B	UL94 V-0	Receptacle	USB 2.0
Amphenol ICC (Commercial Products) UE27AC54100	30 VAC	Copper Alloy	Gold	4	85 °C	-40 °C	Black	1500	Through Hole, Right Angle	1 A	1	Shielded	Horizontal	Solder	USB-A (USB TYPE-A)	UL94 V-0	Receptacle	USB 2.0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
