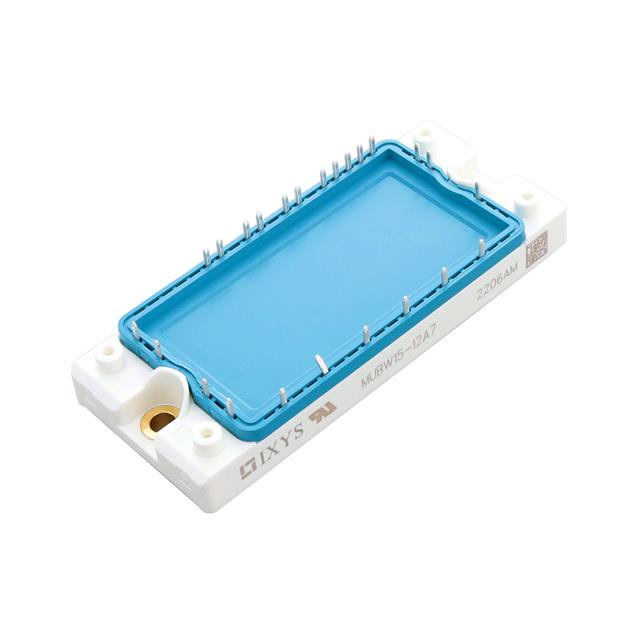

MUBW15-12A7

Obsolete

IXYS

IGBT MODULE 1200V 35A 180W E2

Search across all available documentation for this part.

Obsolete

IXYS

IGBT MODULE 1200V 35A 180W E2

Technical Specifications

Parameters and characteristics for this part

Specification	MUBW15-12A7

Configuration	Brake, Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	35 A
Current - Collector Cutoff (Max) [Max]	900 µA
IGBT Type	NPT
Input	Three Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	1 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	E2
Power - Max [Max]	180 W
Supplier Device Package	E2
Vce(on) (Max) @ Vge, Ic	2.6 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Package / Case	Mounting Type	Supplier Device Package	Input	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	Operating Temperature [Min]	Operating Temperature [Max]	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	IGBT Type	Configuration	Current - Collector Cutoff (Max) [Max]
IXYS MUBW15-06A7	E2	Chassis Mount	E2	Three Phase Bridge Rectifier	25 A	600 V	800 pF	-40 °C	125 ¯C	2.3 V	100 W	NPT	Brake Three Phase Inverter
IXYS MUBW15-06A6K	E1	Chassis Mount	E1	Three Phase Bridge Rectifier	19 A	600 V	600 pF	-40 °C	125 ¯C	2.9 V	75 W	NPT	Brake Three Phase Inverter
IXYS MUBW15-12A7	E2	Chassis Mount	E2	Three Phase Bridge Rectifier	35 A	1200 V	1 nF	-40 °C	125 ¯C	2.6 V	180 W	NPT	Brake Three Phase Inverter	900 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module NPT Three Phase Inverter with Brake 1200 V 35 A 180 W Chassis Mount E2

Technical documentation and resources

No documents available
