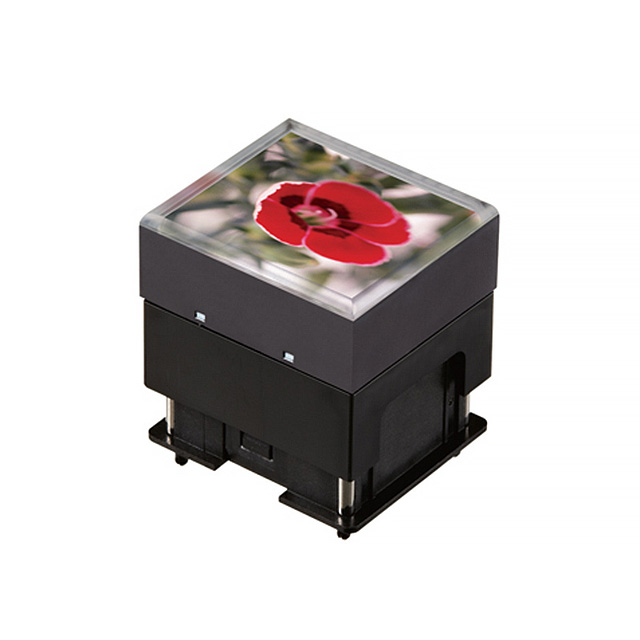

ISF15ACP4
ActiveNKK Switches
PROGRAMMABLE DISPLAY SWITCH, SMARTSWITCH IS SERIES, SPST-NO, THROUGH HOLE, 100 MA, 12 V, OLED
Deep-Dive with AI
Search across all available documentation for this part.
ISF15ACP4
ActiveNKK Switches
PROGRAMMABLE DISPLAY SWITCH, SMARTSWITCH IS SERIES, SPST-NO, THROUGH HOLE, 100 MA, 12 V, OLED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISF15ACP4 |
|---|---|
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.1 A, 12 VDC |
| Display Mode | 65536 Colors, Passive Matrix |
| Face Size [x] | 23.13 mm |
| Face Size [y] | 20.59 mm |
| Mounting Type | Through Hole |
| Operating Force | 204 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Pixel Format [x] | 96 |
| Pixel Format [y] | 64 |
| Supply Voltage [Max] | 3.5 VDC |
| Supply Voltage [Min] | 2.4 VDC |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Travel Range | 1.8 mm |
| Type | OLED, Pushbutton |
| Viewing Area [x] | 21.3 mm |
| Viewing Area [y] | 18.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ISF15ACP Series
Programmable Display Switch Pushbutton, OLED SPST-NO 0.1A @ 12VDC Through Hole
