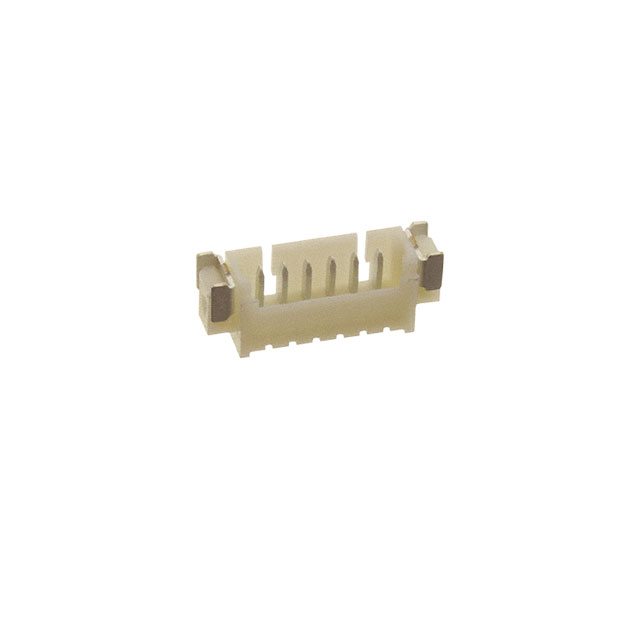

125SH-A-06-TR-SMT

Active

Adam Tech

CONN HEADER SMD R/A 6POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications

125SH-A-06-TR-SMT

Active

Adam Tech

CONN HEADER SMD R/A 6POS 1.25MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.12
		10	$ 0.85
		100	$ 0.65

Description

General part information

125SH-A Series

Connector Header Surface Mount, Right Angle 6 position 0.049" (1.25mm)

Documents

Technical documentation and resources

ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	125SH-A-06-TR-SMT	125SH-A Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	-	2.5 mm
Contact Length - Mating	-	0.098 "
Contact Length - Post	-	0.091 in
Contact Length - Post	-	2.3 mm
Contact Length - Post	-	2.2 mm
Contact Length - Post	-	0.087 in
Contact Material	Brass	Brass, Phosphor Bronze
Contact Shape	Rectangular	Square, Rectangular
Contact Type	Male Pin	Male Pin, Male Blade
Fastening Type	Friction Lock	Friction Lock
Features	Solder Retention	Solder Retention
Insulation Color	Natural	Black, Natural
Insulation Height	0.134 in	0.13 - 0.185 in
Insulation Height	3.4 mm	3.3 - 4.7 mm
Insulation Material	-	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Through Hole, Through Hole, Right Angle, Surface Mount, Right Angle
Number of Positions	6	2 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-40 - -25 °C
Pitch - Mating	1.25 mm	1.25 mm
Pitch - Mating	0.049 in	0.049 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	125 - 250 VAC

125SH-A Series

CONN HEADER SMD 9POS 1.25MM

Part	Connector Type	Contact Type	Mounting Type	Features	Contact Shape	Contact Material	Style	Insulation Color	Material Flammability Rating	Number of Positions Loaded	Number of Positions	Contact Length - Mating	Contact Length - Mating	Shrouding	Termination	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Voltage Rating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]
Adam Tech 125SH-A-09-TS-SMT	Header	Male Pin	Surface Mount	Solder Retention	Square	Brass	Board to Cable/Wire	Black	UL94 V-0	All	9	2.5 mm	0.098 "	Shrouded - 4 Wall	Solder	1.25 mm	0.049 in	1	Tin	85 °C	-40 °C	Friction Lock	250 VAC	4.6 mm	0.181 in
Adam Tech 125SH-A-04-TS	Header	Male Blade	Through Hole		Rectangular	Phosphor Bronze	Board to Cable/Wire	Natural	UL94 V-0	All	4			Shrouded - 4 Wall	Solder	1.25 mm	0.049 in	1	Tin	85 °C	-40 °C	Friction Lock	125 VAC	4.7 mm	0.185 in	0.091 in	2.3 mm
Adam Tech 125SH-A-08-TR	Header	Male Pin	Through Hole, Right Angle		Square	Brass	Board to Cable/Wire	Black	UL94 V-0	All	8	2.5 mm	0.098 "	Shrouded - 4 Wall	Solder	1.25 mm	0.049 in	1	Tin	85 °C	-25 °C	Friction Lock	250 VAC	3.3 mm	0.13 in			Polyamide (PA46), Nylon 4/6	2.2 mm	0.087 in
Adam Tech 125SH-A-07-TR	Header	Male Pin	Through Hole, Right Angle		Square	Brass	Board to Cable/Wire	Black	UL94 V-0	All	7	2.5 mm	0.098 "	Shrouded - 4 Wall	Solder	1.25 mm	0.049 in	1	Tin	85 °C	-25 °C	Friction Lock	250 VAC	3.3 mm	0.13 in			Polyamide (PA46), Nylon 4/6	2.2 mm	0.087 in
Adam Tech 125SH-A-02-TS	Header	Male Blade	Through Hole		Rectangular	Phosphor Bronze	Board to Cable/Wire	Natural	UL94 V-0	All	2			Shrouded - 4 Wall	Solder	1.25 mm	0.049 in	1	Tin	85 °C	-40 °C	Friction Lock	125 VAC	4.7 mm	0.185 in	0.091 in	2.3 mm
Adam Tech 125SH-A-06-TR-SMT	Header	Male Pin	Surface Mount, Right Angle	Solder Retention	Rectangular	Brass	Board to Cable/Wire	Natural	UL94 V-0	All	6			Shrouded - 4 Wall	Solder	1.25 mm	0.049 in	1	Tin	85 °C	-25 °C	Friction Lock	250 VAC	3.4 mm	0.134 in
Adam Tech 125SH-A-02-TS-SMT	Header	Male Pin	Surface Mount	Solder Retention	Square	Brass	Board to Cable/Wire	Black	UL94 V-0	All	2	2.5 mm	0.098 "	Shrouded - 4 Wall	Solder	1.25 mm	0.049 in	1	Tin	85 °C	-40 °C	Friction Lock	250 VAC	4.6 mm	0.181 in
Adam Tech 125SH-A-03-TR	Header	Male Pin	Through Hole, Right Angle		Square	Brass	Board to Cable/Wire	Black	UL94 V-0	All		2.5 mm	0.098 "	Shrouded - 4 Wall	Solder	1.25 mm	0.049 in	1	Tin	85 °C	-25 °C	Friction Lock	250 VAC	3.3 mm	0.13 in			Polyamide (PA46), Nylon 4/6	2.2 mm	0.087 in
Adam Tech 125SH-A-09-TR	Header	Male Pin	Through Hole, Right Angle		Square	Brass	Board to Cable/Wire	Black	UL94 V-0	All	9	2.5 mm	0.098 "	Shrouded - 4 Wall	Solder	1.25 mm	0.049 in	1	Tin	85 °C	-25 °C	Friction Lock	250 VAC	3.3 mm	0.13 in			Polyamide (PA46), Nylon 4/6	2.2 mm	0.087 in
Adam Tech 125SH-A-05-TS	Header	Male Blade	Through Hole		Rectangular	Phosphor Bronze	Board to Cable/Wire	Natural	UL94 V-0	All				Shrouded - 4 Wall	Solder	1.25 mm	0.049 in	1	Tin	85 °C	-40 °C	Friction Lock	125 VAC	4.7 mm	0.185 in	0.091 in	2.3 mm
