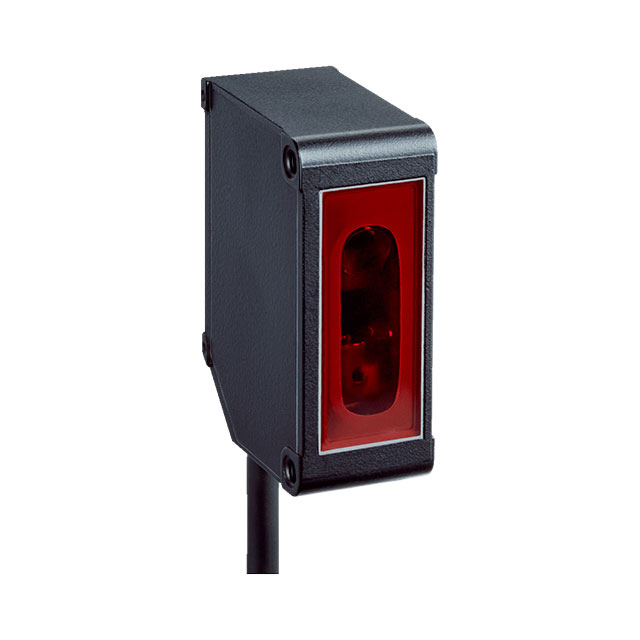

Specification	OD1-B035C15I25

Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Installation Distance (Max)	50 mm
Installation Distance (Min)	20 mm
Mounting Type	Chassis Mount
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	-10 °C
Termination Style	Cable with Connector
Type	2D Laser Displacement Sensor
Voltage - Supply (Maximum)	24 VAC
Voltage - Supply (Minimum)	12 VDC

OD1-B035 Series

Part	Ingress Protection Description	Ingress Protection IP Rating	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Termination Style	Mounting Type	Installation Distance (Max)	Installation Distance (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Type
SICK, Inc. 6050504	Dust Tight Waterproof	IP67	12 VDC	24 VAC	Cable with Connector	Chassis Mount	50 mm	20 mm	-10 °C	40 °C	2D Laser Displacement Sensor
SICK, Inc. OD1-B035C15Q15	Dust Tight Waterproof	IP67	12 VDC	24 VAC	Cable with Connector	Chassis Mount	50 mm	20 mm	-10 °C	40 °C	2D Laser Displacement Sensor
SICK, Inc. 6050505	Dust Tight Waterproof	IP67	12 VDC	24 VAC	Connector	Chassis Mount	50 mm	20 mm	-10 °C	40 °C	2D Laser Displacement Sensor
SICK, Inc. 6050506	Dust Tight Waterproof	IP67	12 VDC	24 VAC	Cable with Connector	Chassis Mount	50 mm	20 mm	-10 °C	40 °C	2D Laser Displacement Sensor
SICK, Inc. 6052308	Dust Tight Waterproof	IP67	12 VDC	24 VAC	Connector	Chassis Mount	50 mm	20 mm	-10 °C	40 °C	2D Laser Displacement Sensor
SICK, Inc. 6054083	Dust Tight Waterproof	IP67	12 VDC	24 VAC	Cable with Connector	Chassis Mount	50 mm	20 mm	-10 °C	40 °C	2D Laser Displacement Sensor
SICK, Inc. OD1-B035H15I14	Dust Tight Waterproof	IP67	12 VDC	24 VAC	Connector	Chassis Mount	50 mm	20 mm	-10 °C	40 °C	2D Laser Displacement Sensor
SICK, Inc. OD1-B035C15I25	Dust Tight Waterproof	IP67	12 VDC	24 VAC	Cable with Connector	Chassis Mount	50 mm	20 mm	-10 °C	40 °C	2D Laser Displacement Sensor
