TS1117BCW25 RPG

Active

Taiwan Semiconductor Corporation

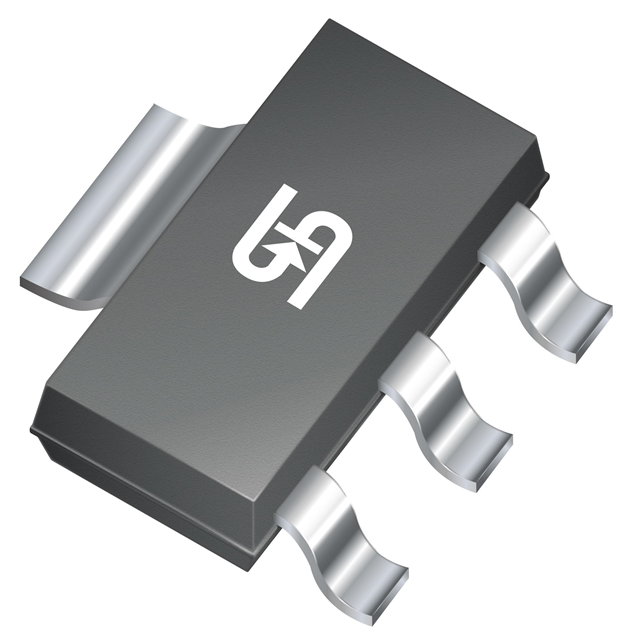

IC REG LINEAR 2.5V 1A SOT223

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

IC REG LINEAR 2.5V 1A SOT223

Technical Specifications

Parameters and characteristics for this part

Specification	TS1117BCW25 RPG

Current - Output	1 A
Current - Quiescent (Iq)	10 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-261AA, TO-261-4
Protection Features	Over Current, Over Temperature
PSRR	60 dB
Supplier Device Package	SOT-223
Voltage - Input (Max) [Max]	12 V
Voltage - Output (Min/Fixed)	2.5 V
Voltage Dropout (Max) [Max]	1.5 V

Part	Package / Case	Output Type	PSRR	Output Configuration	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Protection Features	Current - Output	Voltage - Input (Max) [Max]	Supplier Device Package	Number of Regulators	Output Type	Voltage - Output (Max) [Max]
Taiwan Semiconductor Corporation TS1117BCW50 RPG	TO-261-4 TO-261AA	1.81 mOhm	60 dB	Positive	Surface Mount	125 °C	-40 °C	1.5 V	5 V	10 mA	Over Current Over Temperature	1 A	12 V	SOT-223	1
Taiwan Semiconductor Corporation TS1117BCP ROG	DPAK (2 Leads + Tab) SC-63 TO-252-3		60 dB	Positive	Surface Mount	125 °C	-40 °C	1.5 V	1.25 V	10 mA	Over Current Over Temperature	1 A	12 V	TO-252 (DPAK)	1	Adjustable	12 V
Taiwan Semiconductor Corporation TS1117BCW25 RPG	TO-261-4 TO-261AA	1.81 mOhm	60 dB	Positive	Surface Mount	125 °C	-40 °C	1.5 V	2.5 V	10 mA	Over Current Over Temperature	1 A	12 V	SOT-223	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
