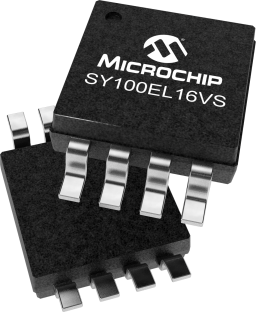

SY100EL16VSKG-TR
ActiveVARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER
Deep-Dive with AI
Search across all available documentation for this part.
SY100EL16VSKG-TR
ActiveVARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SY100EL16VSKG-TR | SY100EL16VS Series |
|---|---|---|
| - | - | |
| Logic Type | Differential Receiver | Differential Receiver |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-MSOP, 8-TSSOP | 8-MSOP, 8-TSSOP |
| Package / Case | 3 mm | 3 mm |
| Package / Case [custom] | 0.118 in | 0.118 in |
| Supplier Device Package | 8-MSOP | 8-MSOP |
| Supply Voltage | 5 V, 3.3 V | 3.3 - 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | T/R | 1 | $ 3.32 | |
| 25 | $ 2.77 | |||
| 100 | $ 2.52 | |||
| 1000 | $ 2.43 | |||
| 5000 | $ 2.40 | |||
| 10000 | $ 2.38 | |||
SY100EL16VS Series
Variable Output Swing Differential Receiver
| Part | Supplier Device Package | Logic Type | Package / Case | Package / Case [custom] | Package / Case | Supply Voltage | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|
Microchip Technology SY100EL16VSKG | |||||||||
Microchip Technology SY100EL16VSKG-TR | 8-MSOP | Differential Receiver | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 3.3 V, 5 V | Surface Mount | 85 °C | -40 °C |
Description
General part information
SY100EL16VS Series
The SY100EL16VS are differential receivers with variable output swing. The devices are functionally equivalent to the EL16V devices with an input that control the amplitude of the outputs.The operational range of the EL16VS control input is from VBB (max. swing) to VCC (min. swing). Simple control of the output swing can be obtained by a variable resistor between the VBB pin and VCC with the wiper driving VCTRL.The EL16VS provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBBpin should be used only as a bias for the EL16VS as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to ground via a 0.01mF capacitor.Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW.
