S1AWF

Active

NKK Switches

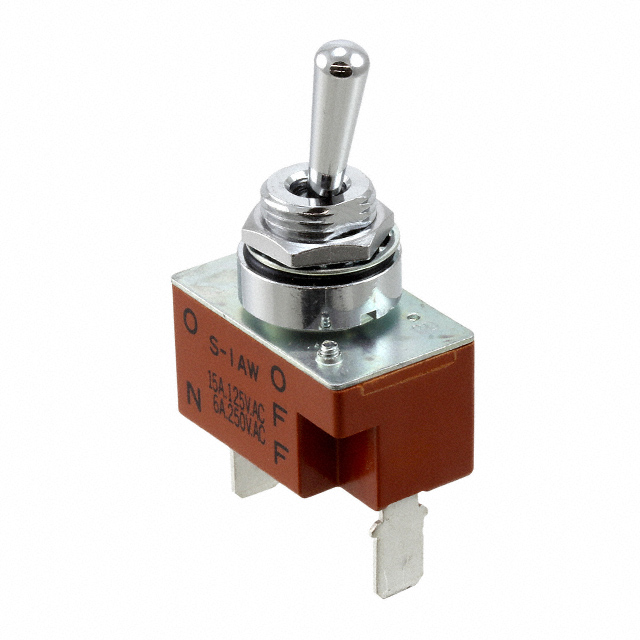

TOGGLE SWITCH, ON-OFF, SPST, NON ILLUMINATED, 20 A, PANEL MOUNT

Search across all available documentation for this part.

Active

NKK Switches

TOGGLE SWITCH, ON-OFF, SPST, NON ILLUMINATED, 20 A, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	S1AWF

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPST
Current Rating (Amps)	20 A, 15 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Length [x]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Type	Bushing Thread	Bushing Thread	Electrical Life	Current Rating (Amps)	Circuit	Switch Function	Illumination	Voltage Rating - AC	Termination Style	Actuator Material
NKK Switches S1AWB	12.5 mm	30 V	17.5 mm	IP68 - Dust Tight Waterproof	70 °C	-30 ░C	Waterproof Boot	Standard Round	M12	1 x 1	25000 Steps	15 A 20 A	SPST	On-Off	Non-Illuminated	125 V	Solder Lug
NKK Switches S1AWF	12.5 mm	30 V	17.5 mm	IP67 - Dust Tight Waterproof	70 °C	-30 ░C		Standard Round	M12	1 x 1	25000 Steps	15 A 20 A	SPST	On-Off	Non-Illuminated	125 V	Quick Connect - 0.250" (6.3mm)	Brass Chrome Plated
NKK Switches S1AW-WL	12.5 mm	30 V	17.5 mm	IP67 - Dust Tight Waterproof	70 °C	-30 ░C		Standard Round	M12	1 x 1	25000 Steps	15 A 20 A	SPST	On-Off	Non-Illuminated	125 V	Wire Leads	Brass Chrome Plated
