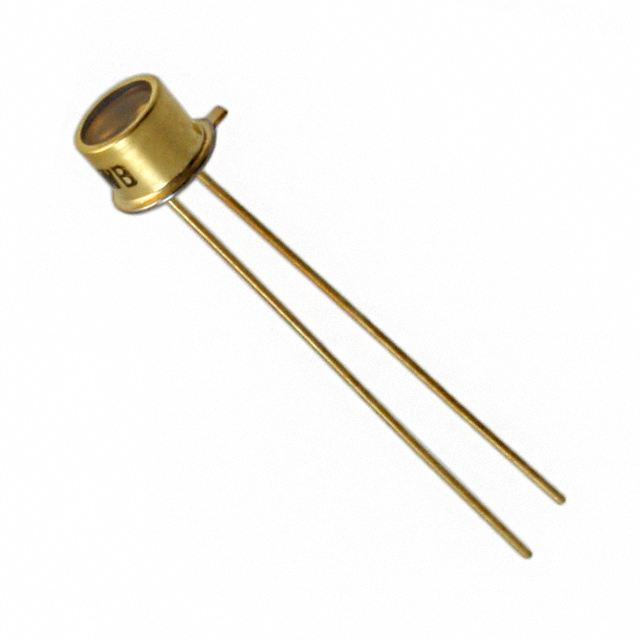

ODD-1WB

Active

Opto Diode Corp

SENSOR PHOTODIODE 940NM TO18

Search across all available documentation for this part.

Active

Opto Diode Corp

SENSOR PHOTODIODE 940NM TO18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 940nm 8ns

Technical documentation and resources

Part	Wavelength	Active Area	Mounting Type	Color - Enhanced	Response Time	Voltage - DC Reverse (Vr) (Max) [Max]	Spectral Range [Max] [x]	Spectral Range [Min] [x]	Responsivity @ nm	Current - Dark (Typ)	Operating Temperature [Max]	Operating Temperature [Min]
Opto Diode Corp ODD-1W	940 nm	1 mm˛	Through Hole	Red	8 ns	60 V	1100 nm	400 nm	0.4 A/W	200 pA	100 °C	-55 °C
Opto Diode Corp ODD-1B	940 nm	1 mm˛	Through Hole	Blue	8 ns	60 V	1100 nm	400 nm	0.28 A/W	200 pA	100 °C	-55 °C
Opto Diode Corp ODD-1WB	940 nm	1 mm˛	Through Hole	Blue	8 ns	60 V	1100 nm	400 nm	0.28 A/W	200 pA	100 °C	-55 °C
