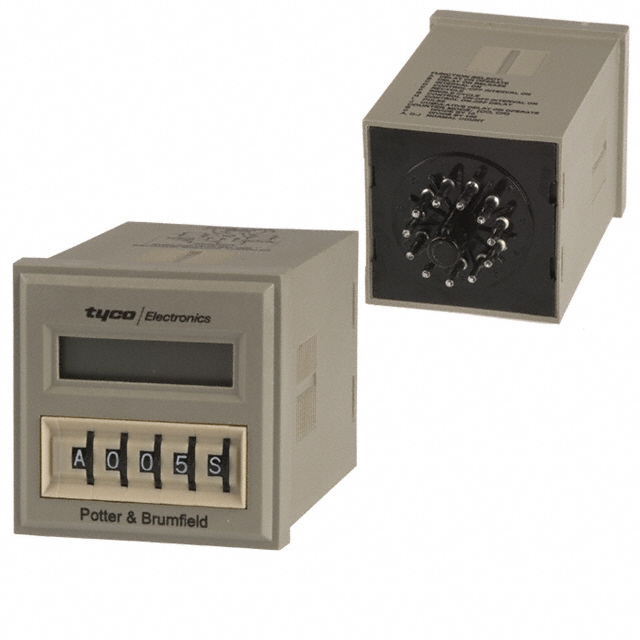

CNT-35-76

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TIME DELAY 9990HR 10A 277V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TIME DELAY 9990HR 10A 277V

Technical Specifications

Parameters and characteristics for this part

Specification	CNT-35-76

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage [custom]	277 VAC
Contact Rating @ Voltage [custom]	10 A
Delay Time [Max]	9990 Hrs
Delay Time [Min]	0.1 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 11 Pin (Octal)
Timing Adjustment Method	Thumbwheel Switches
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply	120 VAC

Part	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Function	Timing Initiate Method	Timing Adjustment Method	Relay Type	Circuit	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Delay Time [Max]	Delay Time [Min]	Voltage - Supply
TE Connectivity Potter & Brumfield Relays CNT-35-96-1001	Plug In 11 Pin (Octal)	24 VAC	240 VAC	Socketable	Programmable (Multi-Function)	Input Voltage Trigger Signal	Thumbwheel Switches	Mechanical Relay	DPDT (2 Form C)	277 VAC	10 A	9990 Hrs	0.1 Sec
TE Connectivity Potter & Brumfield Relays CNT-35-76	Plug In 11 Pin (Octal)			Socketable	Programmable (Multi-Function)	Input Voltage Trigger Signal	Thumbwheel Switches	Mechanical Relay	DPDT (2 Form C)	277 VAC	10 A	9990 Hrs	0.1 Sec	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.1 Sec ~ 9990 Hrs Delay 10A @ 277VAC Socketable
