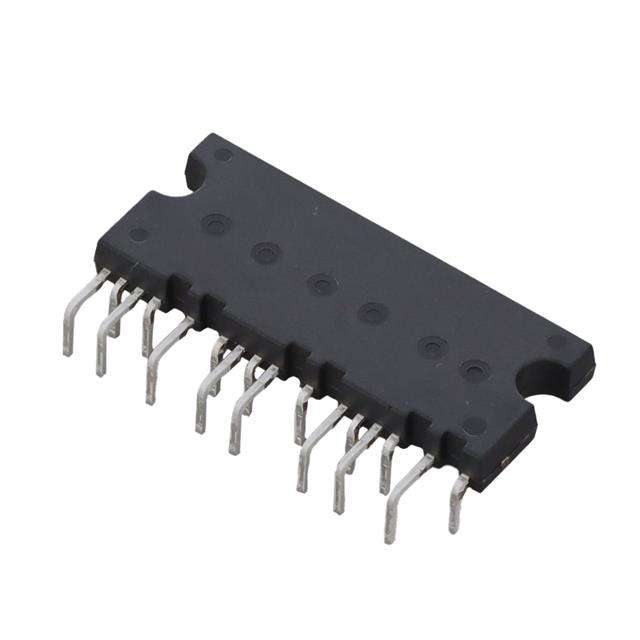

IM241L6T2BAKMA1

Active

Infineon Technologies

CIPOS™ MICRO 600 V, 6 A THREE-PHASE RCD2 IGBT BASED INTELLIGENT POWER MODULE WITH OPEN EMITTER IN DIP 29X12 PACKAGE PROVIDING FULLY-FEATURED COMPACT INVERTER SOLUTION FOR LOW MOTOR DRIVE APPLICATIONS LIKE FANS, PUMPS AND LIGHT LOAD APPLIANCES.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IM241L6T2BAKMA1

Active

Infineon Technologies

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IM241L6T2BAKMA1

Configuration	Three Phase Inverter
Input	Standard
Mounting Type	Through Hole
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Power - Max [Max]	15 W
Supplier Device Package	23-DIP
Vce(on) (Max) @ Vge, Ic	1.62 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

IM241L6 Series

Part	Vce(on) (Max) @ Vge, Ic	Input	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	NTC Thermistor	Configuration	Package / Case
Infineon Technologies IM241L6T2BAKMA1	1.62 V	Standard	600 V	Through Hole	15 W	150 °C	-40 °C	23-DIP		Three Phase Inverter
Infineon Technologies IM241L6S1BAUMA1	1.62 V	Standard	600 V	Surface Mount	15 W	150 °C	-40 °C	23-SOP		Three Phase Inverter	23-PowerSMD Module Gull Wing

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.05
		15	$ 6.37
		30	$ 6.07
		105	$ 5.27
		255	$ 5.21
Newark	Each	1	$ 9.82
		10	$ 8.73
		25	$ 8.47
		50	$ 8.36
		100	$ 8.25
		480	$ 8.24

Description

General part information

IM241L6 Series

CIPOS™ Micro600 V, 6 A three-phase RCD2 IGBT based intelligent power module with open emitter in DIP 29x12 package providing fully-featured compact inverter solution for low motor drive applications like fans, pumps and light load appliances.
