1116604-3
ActiveTE Connectivity AMP Connectors

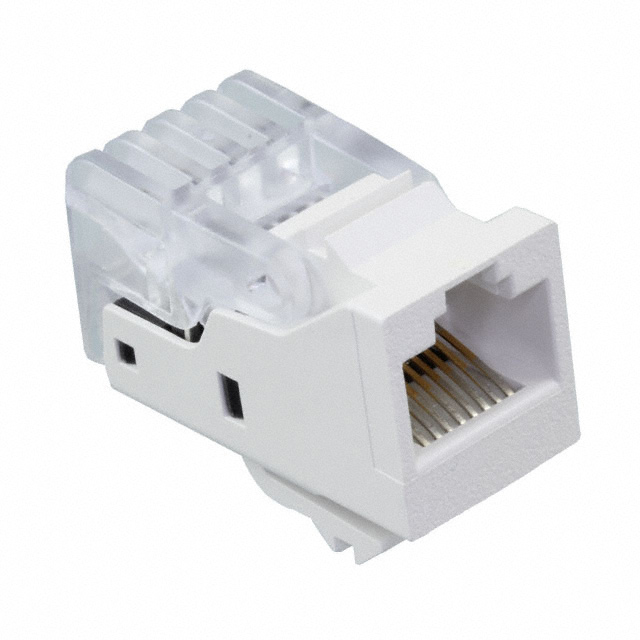

CONN MOD JACK 8P8C UNSHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1116604-3
ActiveTE Connectivity AMP Connectors
CONN MOD JACK 8P8C UNSHIELDED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1116604-3 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Panel Lock, Toolless |
| Housing Material | Polyphenylene Oxide (PPO) |
| LED Color | Does Not Contain LED |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Orientation | Straight |
| Ratings | Cat5e |
| Shielding | Unshielded |
| Tab Direction | User Selectable |
| Termination | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 15 | $ 7.05 | |
| 30 | $ 6.53 | |||
1116604 Series
CONN MOD JACK 8P8C UNSHIELDED
| Part | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | LED Color | Shielding | Contact Finish | Ratings | Number of Positions/Contacts | Features | Tab Direction | Contact Material | Number of Rows | Termination | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Connector Type | Number of Ports | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1116604-3 | -10 °C | 158 °F | Does Not Contain LED | Unshielded | Gold | Cat5e | 8p8c (RJ45, Ethernet) | Panel Lock, Toolless | User Selectable | Phosphor Bronze | 1 | IDC | 50 µin | 1.27 µm | Polyphenylene Oxide (PPO) | Jack | 1 | Straight |
Description
General part information
1116604 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat5e
