SLM50P6QPMA

Active

BANNER ENGINEERING

SLM SERIES: RUGGED NICKEL PLATED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SLM SERIES: RUGGED NICKEL PLATED

Technical Specifications

Parameters and characteristics for this part

Specification	SLM50P6QPMA

Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67
Light Source	LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	500 µs
Sensing Distance	50 mm
Sensing Distance	1.969 in
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Ingress Protection	Light Source	Connection Method	Sensing Distance	Sensing Distance	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Response Time
BANNER ENGINEERING SLM50P6QPMA	NEMA 6P IEC IP67	LED	Connector	50 mm	1.969 in	PNP - Dark-ON/Light-ON - Selectable	30 VDC	10 VDC	-20 C	60 °C	500 µs
BANNER ENGINEERING SLM50P6Q	IP67 NEMA 6P	LED	Connector	50 mm	1.969 in	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	-20 C	60 °C	500 µs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 224.00

General part information

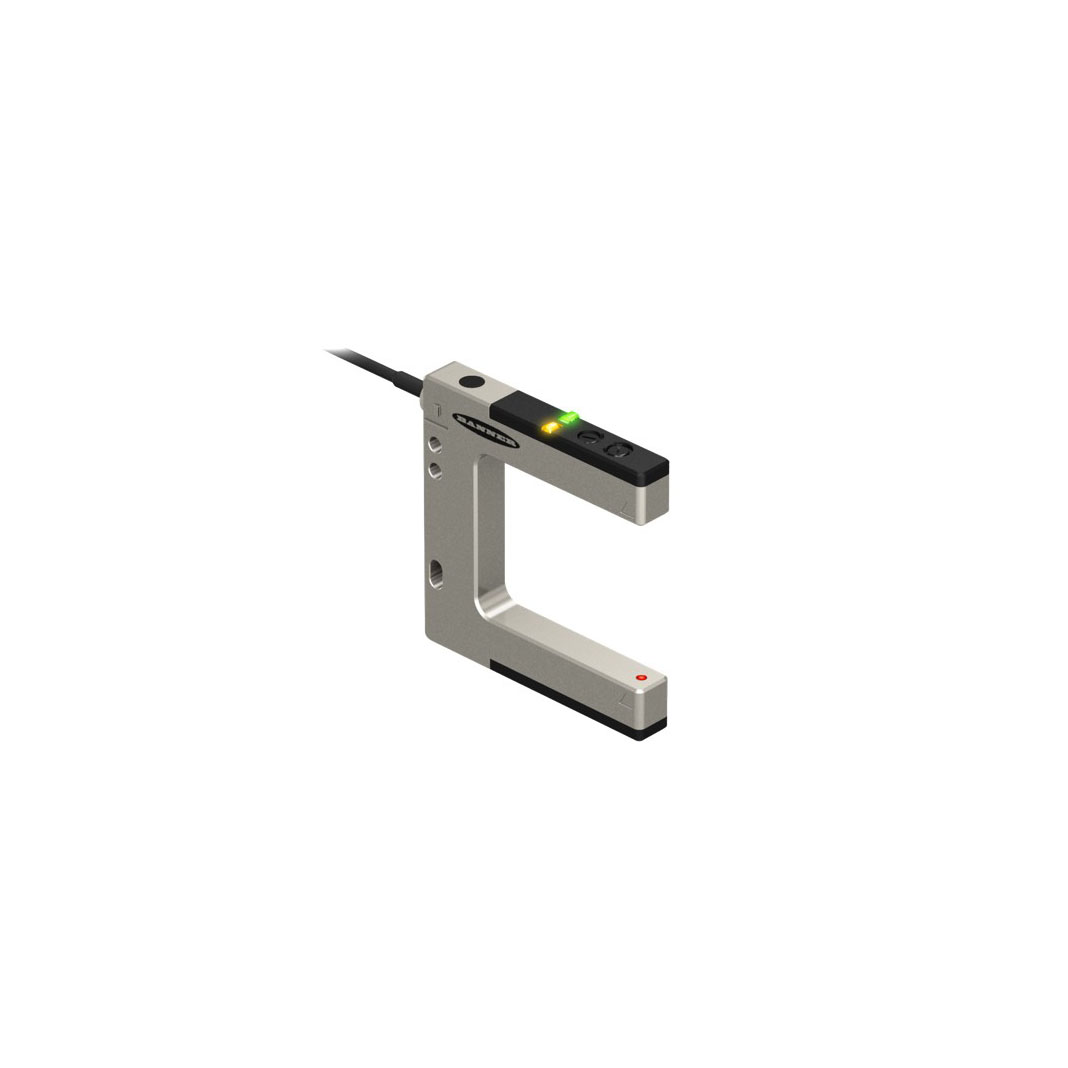

Optical Sensor 1.969" (50mm) PNP - Dark-ON/Light-ON - Selectable

Technical documentation and resources
