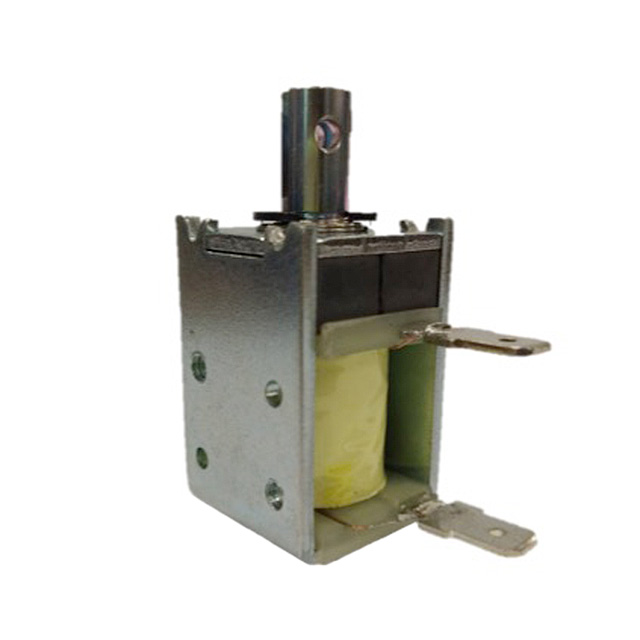

DSML-0630-24P
ActiveDelta Electronics
LINEAR SOLENOID, C TYPE, 24 VDC, 40 W, 14 OHM, QUICK CONNECT, DSML SERIES, PULSE, PULL
Deep-Dive with AI
Search across all available documentation for this part.
DSML-0630-24P
ActiveDelta Electronics
LINEAR SOLENOID, C TYPE, 24 VDC, 40 W, 14 OHM, QUICK CONNECT, DSML SERIES, PULSE, PULL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSML-0630-24P |
|---|---|
| DC Resistance (DCR) | 14 Ohm |
| Diameter - Shaft [diameter] | 0.25 in |
| Diameter - Shaft [diameter] | 6.35 mm |
| Duty Cycle | Pulse |
| Mounting Type | Chassis Mount |
| Power (Watts) | 40 W |
| Shaft Detail | Clevis |
| Size / Dimension [x] | 1.2 " |
| Size / Dimension [x] | 29.46 mm |
| Size / Dimension [y] | 19.05 mm |
| Size / Dimension [y] | 0.75 in |
| Size / Dimension [z] | 19.05 mm |
| Size / Dimension [z] | 0.75 in |
| Stroke Length | 0.5 in |
| Stroke Length | 12.7 mm |
| Technology | Electromechanical |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Open Frame Latching (Pull) |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DSML-0630 Series
Pulse Duty Solenoid Open Frame Latching (Pull) Type 0.500" (12.70mm) Stroke 24VDC Chassis Mount
