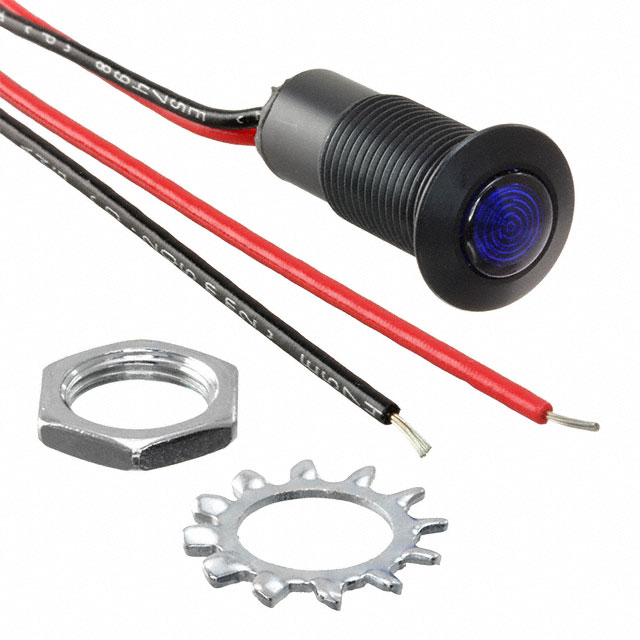

CNX_480_1_BTP_12
ActiveVisual Communications Company - VCC
PMT INDCTR BLK ANDZD ALUM BLUE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CNX_480_1_BTP_12 |
|---|---|
| Ingress Protection | NEMA 4 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size [diameter] | 12.7 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Fresnel |
| Millicandela Rating | 1125 mcd |
| Panel Cutout Dimensions | 0.4 in |
| Panel Cutout Dimensions | 10.16 mm |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads - 12" (304.80mm) |
| Type | LED |
| Voltage | 3 V |
CNX_480 Series
| Part | Panel Cutout Shape | Lens Transparency | Lens Style | Millicandela Rating | Voltage | Termination Style | Ingress Protection | Panel Cutout Dimensions | Panel Cutout Dimensions | Lens Color | Type | Lens Size [diameter] | Lamp Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Visual Communications Company - VCC | Round | Fresnel | Round with Domed Top | 330 mcd | 1.9 V | Wire Leads - 12" (304.80mm) | NEMA 4 | 0.4 in | 10.16 mm | Yellow | LED | 12.7 mm | Yellow |
Visual Communications Company - VCC | Round | Fresnel | Round with Domed Top | 295 mcd | 1.8 V | Wire Leads - 12" (304.80mm) | NEMA 4 | 0.4 in | 10.16 mm | Red | LED | 12.7 mm | Red |
Visual Communications Company - VCC | Round | Fresnel | Round with Domed Top | 295 mcd | 1.8 V | Wire Leads - 12" (304.80mm) | NEMA 4 | 0.4 in | 10.16 mm | Red | LED | 12.7 mm | Red |
Visual Communications Company - VCC | Round | Fresnel | Round with Domed Top | 415 mcd | 1.9 V | Wire Leads - 12" (304.80mm) | NEMA 4 | 0.4 in | 10.16 mm | Green | LED | 12.7 mm | Green |
Visual Communications Company - VCC | Round | Fresnel | Round with Domed Top | 1125 mcd | 3 V | Wire Leads - 12" (304.80mm) | NEMA 4 | 0.4 in | 10.16 mm | Blue | LED | 12.7 mm | Blue |
Visual Communications Company - VCC | Round | Fresnel | Round with Domed Top | 1125 mcd | 3 V | Wire Leads - 12" (304.80mm) | NEMA 4 | 0.4 in | 10.16 mm | Blue | LED | 12.7 mm | Blue |
Visual Communications Company - VCC | Round | Fresnel | Round with Domed Top | 415 mcd | 1.9 V | Wire Leads - 12" (304.80mm) | NEMA 4 | 0.4 in | 10.16 mm | Green | LED | 12.7 mm | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 20.06 | |
| 10 | $ 15.13 | |||
| 100 | $ 12.71 | |||
| 500 | $ 11.67 | |||
Description
General part information
CNX_480 Series
LED Panel Indicator Blue Fresnel 3V 20mA Wire Leads - 12" (304.80mm)
