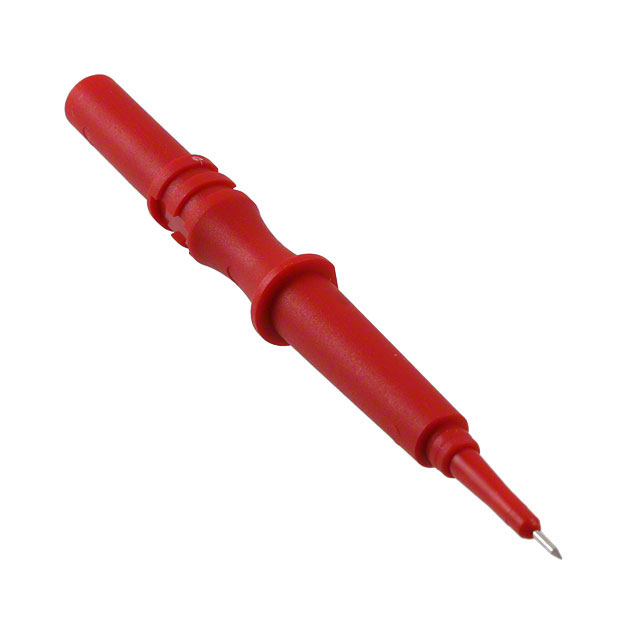

72923-2

Active

Pomona Electronics

SMD TEST PROBE SPRING MNTDED TIP

Search across all available documentation for this part.

Active

Pomona Electronics

SMD TEST PROBE SPRING MNTDED TIP

Technical Specifications

Parameters and characteristics for this part

Specification	72923-2

Color	Red
Connection Type	Female Socket (Jack), Banana, Mini
Current Rating (Amps)	1 A
Includes	IC Insulator Cap
Length - Overall [x]	85 mm
Length - Overall [x]	3.35 in
Length - Tip [custom]	0.177 in
Length - Tip [custom]	4.5 mm
Material - Body	Polypropylene
Material - Tip	Steel
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Quantity	1 Box
Ratings	600 V
Ratings	CAT III
Tip Type	Sharp Tip, Spring Mounted
Tip Type [diameter]	0.03 in
Tip Type [diameter]	0.76 mm

Part	Length - Overall [x]	Length - Overall [x]	Connection Type	Color	Ratings	Ratings	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Tip	Quantity	Includes	Tip Type [diameter]	Tip Type [diameter]	Tip Type	Current Rating (Amps)	Length - Tip [custom]	Length - Tip [custom]	Material - Body
Pomona Electronics 72923-2	85 mm	3.35 in	Banana Female Socket (Jack) Mini	Red	600 V	CAT III	80 C	80 °C	-20 °C	-20 C	Steel	1 Box	IC Insulator Cap	0.03 in	0.76 mm	Sharp Tip Spring Mounted	1 A	0.177 in	4.5 mm	Polypropylene
Pomona Electronics 72923-0	85 mm	3.35 in	Banana Female Socket (Jack) Mini	Black	600 V	CAT III	80 C	80 °C	-20 °C	-20 C	Steel	1 Box	IC Insulator Cap	0.03 in	0.76 mm	Sharp Tip Spring Mounted	1 A	0.177 in	4.5 mm	Polypropylene

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.69
		25	$ 19.49
Newark	Each	1	$ 23.99

General part information

1 A Sharp Tip, Spring Mounted, 0.030" (0.76mm) Dia Red
