X9401WP24I-2.7

Active

Renesas Electronics Corporation

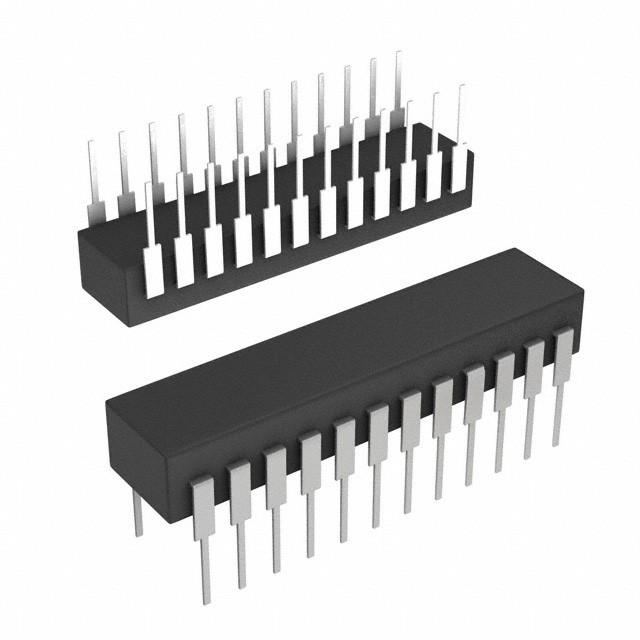

IC DGTL POT 10KOHM 64TAP 24DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

X9401WP24I-2.7

Active

Renesas Electronics Corporation

IC DGTL POT 10KOHM 64TAP 24DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

X9401 Series

Digital Potentiometer 10k Ohm 4 Circuit 64 Taps SPI Interface 24-PDIP

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	X9401WP24I-2.7	X9401 Series

Configuration	Potentiometer	Potentiometer
Features	Selectable Address	Selectable Address
Interface	SPI	SPI
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Circuits	4	4
Number of Taps	64	64
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Package / Case	24-DIP	24-TSSOP, 24-SOIC, 24-DIP
Package / Case	0.6 in	0.6 in
Package / Case	15.24 mm	15.24 mm
Package / Case	-	0.173 - 4.4 in
Package / Case	-	7.5 mm
Package / Case	-	0.295 in
Resistance - Wiper (Ohms) (Typ)	150 Ohms	150 Ohms
Resistance (Ohms)	10k	10k
Supplier Device Package	24-PDIP	24-TSSOP, 24-SOIC, 24-PDIP
Taper	Linear	Linear
Temperature Coefficient (Typ)	300 ppm/°C	300 ppm/°C
Tolerance	20 %	20 %
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	2.7 V	2.7 V

X9401 Series

QUAD, 64 TAP, DIGITALLY CONTROLLED POTENTIOMETER (XDCP™)

Part	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Resistance (Ohms)	Tolerance	Features	Number of Circuits	Mounting Type	Supplier Device Package	Taper	Memory Type	Configuration	Resistance - Wiper (Ohms) (Typ)	Interface	Number of Taps	Temperature Coefficient (Typ)	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case [custom]	Package / Case [custom]	Package / Case	Package / Case
Renesas Electronics Corporation X9401WV24IZ-2.7	24-TSSOP	0.173 in, 4.4 mm	85 °C	-40 °C	10k	20 %	Selectable Address	4	Surface Mount	24-TSSOP	Linear	Non-Volatile	Potentiometer	150 Ohms	SPI	64	300 ppm/°C	2.7 V	5.5 V
Renesas Electronics Corporation X9401WV24Z-2.7T1	24-TSSOP	0.173 in, 4.4 mm	70 °C	0 °C	10k	20 %	Selectable Address	4	Surface Mount	24-TSSOP	Linear	Non-Volatile	Potentiometer	150 Ohms	SPI	64	300 ppm/°C	2.7 V	5.5 V
Renesas Electronics Corporation X9401WS24Z	24-SOIC		70 °C	0 °C	10k	20 %	Selectable Address	4	Surface Mount	24-SOIC	Linear	Non-Volatile	Potentiometer	150 Ohms	SPI	64	300 ppm/°C			7.5 mm	0.295 in
Renesas Electronics Corporation X9401WS24IZ-2.7T1	24-SOIC		85 °C	-40 °C	10k	20 %	Selectable Address	4	Surface Mount	24-SOIC	Linear	Non-Volatile	Potentiometer	150 Ohms	SPI	64	300 ppm/°C	2.7 V	5.5 V	7.5 mm	0.295 in
Renesas Electronics Corporation X9401WP24I-2.7	24-DIP		85 °C	-40 °C	10k	20 %	Selectable Address	4	Through Hole	24-PDIP	Linear	Non-Volatile	Potentiometer	150 Ohms	SPI	64	300 ppm/°C	2.7 V	5.5 V			0.6 in	15.24 mm
Renesas Electronics Corporation X9401WV24ZT1	24-TSSOP	0.173 in, 4.4 mm	70 °C	0 °C	10k	20 %	Selectable Address	4	Surface Mount	24-TSSOP	Linear	Non-Volatile	Potentiometer	150 Ohms	SPI	64	300 ppm/°C
Renesas Electronics Corporation X9401WS24I-2.7	24-SOIC		85 °C	-40 °C	10k	20 %	Selectable Address	4	Surface Mount	24-SOIC	Linear	Non-Volatile	Potentiometer	150 Ohms	SPI	64	300 ppm/°C	2.7 V	5.5 V	7.5 mm	0.295 in
Renesas Electronics Corporation X9401WS24Z-2.7	24-SOIC		70 °C	0 °C	10k	20 %	Selectable Address	4	Surface Mount	24-SOIC	Linear	Non-Volatile	Potentiometer	150 Ohms	SPI	64	300 ppm/°C	2.7 V	5.5 V	7.5 mm	0.295 in
Renesas Electronics Corporation X9401WV24IZ	24-TSSOP	0.173 in, 4.4 mm	85 °C	-40 °C	10k	20 %	Selectable Address	4	Surface Mount	24-TSSOP	Linear	Non-Volatile	Potentiometer	150 Ohms	SPI	64	300 ppm/°C
Renesas Electronics Corporation X9401WV24IZT1	24-TSSOP	0.173 in, 4.4 mm	85 °C	-40 °C	10k	20 %	Selectable Address	4	Surface Mount	24-TSSOP	Linear	Non-Volatile	Potentiometer	150 Ohms	SPI	64	300 ppm/°C
