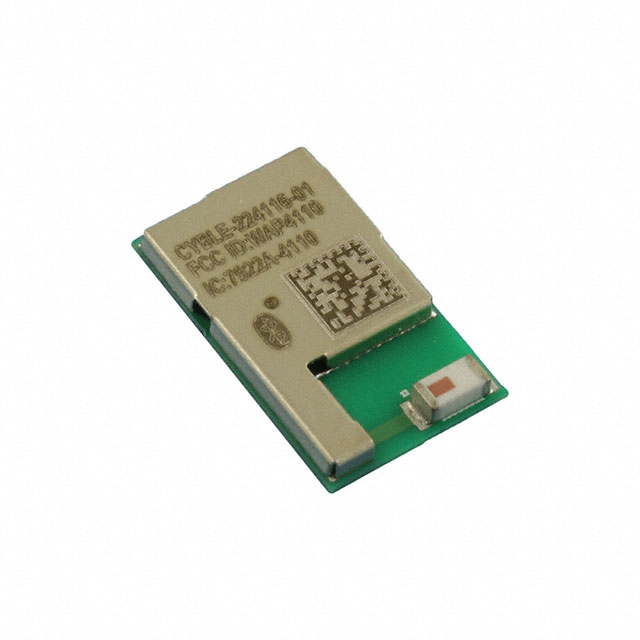

CYBLE-224116-01
ActiveInfineon Technologies
BLUETOOTH MODULE, LE, V4.2, 1MBPS
Deep-Dive with AI
Search across all available documentation for this part.
CYBLE-224116-01
ActiveInfineon Technologies
BLUETOOTH MODULE, LE, V4.2, 1MBPS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CYBLE-224116-01 |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 21.5 mA |
| Current - Transmitting | 20 mA |
| Data Rate | 8 Mbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 32 kB |
| Memory Size [custom] | 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 32-SMD Module |
| Power - Output | 9.5 dBm |
| Protocol | Bluetooth v4.2 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -95 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CYBLE-224116 Series
Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
