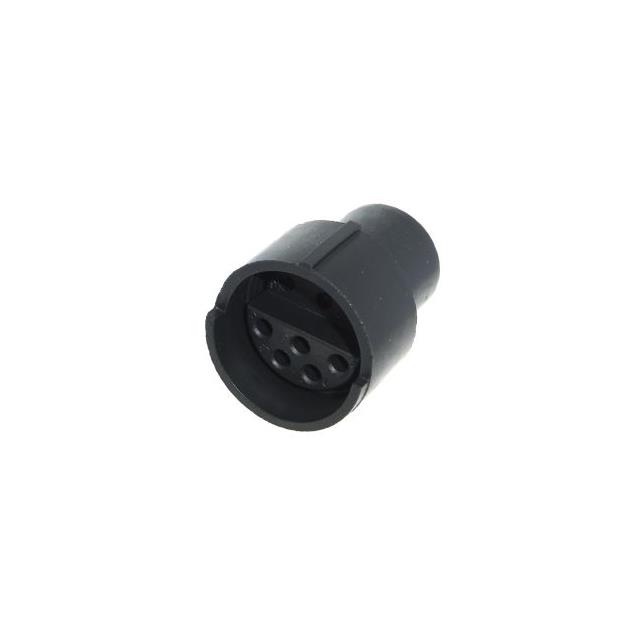

120-1868-000
ActiveSure-Seal
SS-9R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
120-1868-000
ActiveSure-Seal
SS-9R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 120-1868-000 | 120-1 Series |
|---|---|---|
| - | - | |
| Connector Type | Receptacle Housing | Plug Housing, Receptacle Housing |
| Contact Shape | Circular | Circular |
| Contact Type | Crimp | Crimp |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | Black | Black |
| Ingress Protection | IP67, IP65 | IP67, IP65 |
| Insert Material | Santoprene™ 101-73 | Santoprene™ 101-73 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 9 | 1 - 10 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Shell Material | Santoprene™ 101-73 | Santoprene™ 101-73 |
| Shielding | Unshielded | Unshielded |
| Type | For Female Sockets or Male Pins | For Female Sockets or Male Pins |
120-1 Series
SS-8P
| Part | Mounting Type | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Fastening Type | Insert Material | Shielding | Note | Ingress Protection | Orientation | Number of Positions | Connector Type | Contact Type | Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sure-Seal 120-1865-000 | Free Hanging (In-Line) | Circular | -40 °C | 105 ░C | Santoprene™ 101-73 | Push-Pull | Santoprene™ 101-73 | Unshielded | Contacts Not Included | IP65, IP67 | Keyed | 8 | Plug Housing | Crimp | For Female Sockets or Male Pins | Black |
Sure-Seal 120-1806-000 | Free Hanging (In-Line) | Circular | -40 °C | 105 ░C | Santoprene™ 101-73 | Push-Pull | Santoprene™ 101-73 | Unshielded | Contacts Not Included | IP65, IP67 | Keyed | 4 | Receptacle Housing | Crimp | For Female Sockets or Male Pins | Black |
Sure-Seal 120-1870-000 | Free Hanging (In-Line) | Circular | -40 °C | 105 ░C | Santoprene™ 101-73 | Push-Pull | Santoprene™ 101-73 | Unshielded | Contacts Not Included | IP65, IP67 | Keyed | 10 | Receptacle Housing | Crimp | For Female Sockets or Male Pins | Black |
Sure-Seal 120-1833-000 | Free Hanging (In-Line) | Circular | -40 °C | 105 ░C | Santoprene™ 101-73 | Push-Pull | Santoprene™ 101-73 | Unshielded | Contacts Not Included | IP65, IP67 | Keyed | 1 | Receptacle Housing | Crimp | For Female Sockets or Male Pins | Black |
Sure-Seal 120-1840-000 | Free Hanging (In-Line) | Circular | -40 °C | 105 ░C | Santoprene™ 101-73 | Push-Pull | Santoprene™ 101-73 | Unshielded | Contacts Not Included | IP65, IP67 | Keyed | 6 | Receptacle Housing | Crimp | For Female Sockets or Male Pins | Black |
Sure-Seal 120-1867-000 | Free Hanging (In-Line) | Circular | -40 °C | 105 ░C | Santoprene™ 101-73 | Push-Pull | Santoprene™ 101-73 | Unshielded | Contacts Not Included | IP65, IP67 | Keyed | 9 | Plug Housing | Crimp | For Female Sockets or Male Pins | Black |
Sure-Seal 120-1904-001 | ||||||||||||||||
Sure-Seal 120-1906-001 | ||||||||||||||||
Sure-Seal 120-1903-000 | Circular | -40 °C | 105 ░C | Santoprene™ 101-73 | Push-Pull | Santoprene™ 101-73 | Unshielded | Contacts Not Included | IP65, IP67 | Keyed | 1 | Receptacle Housing | Crimp | For Female Sockets or Male Pins | Black | |
Sure-Seal 120-1839-000 | Free Hanging (In-Line) | Circular | -40 °C | 105 ░C | Santoprene™ 101-73 | Push-Pull | Santoprene™ 101-73 | Unshielded | Contacts Not Included | IP65, IP67 | Keyed | Receptacle Housing | Crimp | For Female Sockets or Male Pins | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.73 | |
| 10 | $ 3.52 | |||
| 25 | $ 3.24 | |||
| 50 | $ 2.85 | |||
| 100 | $ 2.55 | |||
Description
General part information
120-1 Series
9 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
