120-1806-000

Active

Sure-Seal

SS-4R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

120-1806-000

Active

Sure-Seal

SS-4R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.64
		10	$ 1.54
		25	$ 1.42
		50	$ 1.25
		100	$ 1.12

Description

General part information

120-1 Series

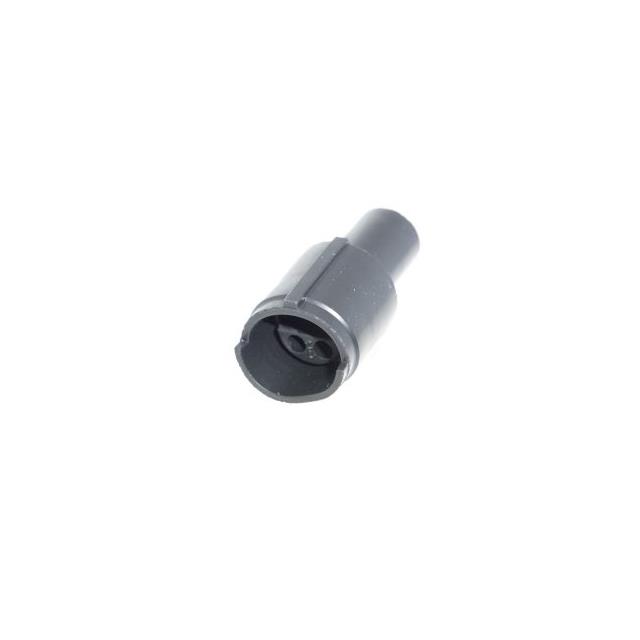

4 Position Circular Connector Receptacle Housing Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	120-1806-000	120-1 Series

	-	-
Connector Type	Receptacle Housing	Plug Housing, Receptacle Housing
Contact Shape	Circular	Circular
Contact Type	Crimp	Crimp
Fastening Type	Push-Pull	Push-Pull
Housing Color	Black	Black
Ingress Protection	IP67, IP65	IP67, IP65
Insert Material	Santoprene™ 101-73	Santoprene™ 101-73
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	1 - 10
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Shell Material	Santoprene™ 101-73	Santoprene™ 101-73
Shielding	Unshielded	Unshielded
Type	For Female Sockets or Male Pins	For Female Sockets or Male Pins

120-1 Series

SS-8P

Part	Mounting Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Fastening Type	Insert Material	Shielding	Note	Ingress Protection	Orientation	Number of Positions	Connector Type	Contact Type	Type	Housing Color
Sure-Seal 120-1865-000	Free Hanging (In-Line)	Circular	-40 °C	105 ░C	Santoprene™ 101-73	Push-Pull	Santoprene™ 101-73	Unshielded	Contacts Not Included	IP65, IP67	Keyed	8	Plug Housing	Crimp	For Female Sockets or Male Pins	Black
Sure-Seal 120-1806-000	Free Hanging (In-Line)	Circular	-40 °C	105 ░C	Santoprene™ 101-73	Push-Pull	Santoprene™ 101-73	Unshielded	Contacts Not Included	IP65, IP67	Keyed	4	Receptacle Housing	Crimp	For Female Sockets or Male Pins	Black
Sure-Seal 120-1870-000	Free Hanging (In-Line)	Circular	-40 °C	105 ░C	Santoprene™ 101-73	Push-Pull	Santoprene™ 101-73	Unshielded	Contacts Not Included	IP65, IP67	Keyed	10	Receptacle Housing	Crimp	For Female Sockets or Male Pins	Black
Sure-Seal 120-1833-000	Free Hanging (In-Line)	Circular	-40 °C	105 ░C	Santoprene™ 101-73	Push-Pull	Santoprene™ 101-73	Unshielded	Contacts Not Included	IP65, IP67	Keyed	1	Receptacle Housing	Crimp	For Female Sockets or Male Pins	Black
Sure-Seal 120-1840-000	Free Hanging (In-Line)	Circular	-40 °C	105 ░C	Santoprene™ 101-73	Push-Pull	Santoprene™ 101-73	Unshielded	Contacts Not Included	IP65, IP67	Keyed	6	Receptacle Housing	Crimp	For Female Sockets or Male Pins	Black
Sure-Seal 120-1867-000	Free Hanging (In-Line)	Circular	-40 °C	105 ░C	Santoprene™ 101-73	Push-Pull	Santoprene™ 101-73	Unshielded	Contacts Not Included	IP65, IP67	Keyed	9	Plug Housing	Crimp	For Female Sockets or Male Pins	Black
Sure-Seal 120-1904-001
Sure-Seal 120-1906-001
Sure-Seal 120-1903-000		Circular	-40 °C	105 ░C	Santoprene™ 101-73	Push-Pull	Santoprene™ 101-73	Unshielded	Contacts Not Included	IP65, IP67	Keyed	1	Receptacle Housing	Crimp	For Female Sockets or Male Pins	Black
Sure-Seal 120-1839-000	Free Hanging (In-Line)	Circular	-40 °C	105 ░C	Santoprene™ 101-73	Push-Pull	Santoprene™ 101-73	Unshielded	Contacts Not Included	IP65, IP67	Keyed		Receptacle Housing	Crimp	For Female Sockets or Male Pins	Black
