2961244
ActivePhoenix Contact

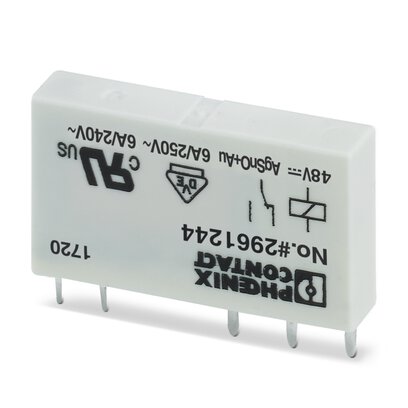

RELAY GEN PURPOSE SPDT 6A 48V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2961244
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 6A 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2961244 | 29612 Series |
|---|---|---|
| Approval Agency | VDE, EAC, UR, cUR | cULus, EAC, UR, VDE, cUR |
| Coil Current | 50 mA | 4.1 - 50 mA |
| Coil Resistance | 960 Ohms | 7.34 - 1440 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 48 VDC | 12 - 110 VDC |
| Contact Form | SPDT (1 Form C) | DPDT (2 Form C), SPDT (1 Form C) |
| Contact Material | Silver (Ag), Gold (Au) | Silver Nickel (AgNi), Gold (Au), Silver (Ag) |
| Contact Rating (Current) | 6 A | 6 - 8 A |
| Load - Max Switching | 1500 VA | 1500 - 2000 VA |
| Mounting Type | Through Hole | Through Hole |
| Operate Time | - | 7 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | - | 3 ms |
| Switching Voltage | 250 VAC | 250 VAC |
| Termination Style | PC Pin | PC Pin |
29612 Series
RELAY GEN PURPOSE DPDT 8A 110V
| Part | Coil Resistance | Coil Current | Coil Voltage | Release Time | Operate Time | Mounting Type | Relay Type | Contact Material | Contact Rating (Current) | Termination Style | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Coil Type | Approval Agency | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2961202 | 26.6 kOhms | 4.1 mA | 110 VDC | 3 ms | 7 ms | Through Hole | General Purpose | Silver Nickel (AgNi) | 8 A | PC Pin | DPDT (2 Form C) | 85 °C | -40 °C | 250 VAC, 250 VDC | Non Latching | cULus, EAC, UR | |
Phoenix Contact 2961299 | 360 Ohms | 33 mA | 12 VDC | 3 ms | 7 ms | Through Hole | General Purpose | Gold (Au), Silver Nickel (AgNi) | 8 A | PC Pin | DPDT (2 Form C) | 85 °C | -40 °C | 250 VAC, 250 VDC | Non Latching | cULus, EAC, UR | |
Phoenix Contact 2961244 | 960 Ohms | 50 mA | 48 VDC | Through Hole | General Purpose | Gold (Au), Silver (Ag) | 6 A | PC Pin | SPDT (1 Form C) | 85 °C | -40 °C | 250 VAC | Non Latching | cUR, EAC, UR, VDE | 1500 VA | ||
Phoenix Contact 2961257 | 360 Ohms | 33 mA | 12 VDC | 3 ms | 7 ms | Through Hole | General Purpose | Silver Nickel (AgNi) | 8 A | PC Pin | DPDT (2 Form C) | 85 °C | -40 °C | 250 VAC, 250 VDC | Non Latching | cULus, EAC, UR | |
Phoenix Contact 2961228 | 26.6 kOhms | 4.1 mA | 110 VDC | 3 ms | 7 ms | Through Hole | General Purpose | Gold (Au), Silver Nickel (AgNi) | 8 A | PC Pin | DPDT (2 Form C) | 85 °C | -40 °C | 250 VAC | Non Latching | cULus, EAC, UR | 2000 VA |
Phoenix Contact 2961215 | 1440 Ohms | 17 mA | 24 VDC | 3 ms | 7 ms | Through Hole | General Purpose | Gold (Au), Silver Nickel (AgNi) | 8 A | PC Pin | DPDT (2 Form C) | 85 °C | -40 °C | 250 VAC | Non Latching | cULus, EAC, UR | 2000 VA |
Phoenix Contact 2961286 | 7.34 kOhms | 8.2 mA | 60 VDC | 3 ms | 7 ms | Through Hole | General Purpose | Gold (Au), Silver Nickel (AgNi) | 8 A | PC Pin | DPDT (2 Form C) | 85 °C | -40 °C | 250 VAC | Non Latching | cULus, UR, VDE | 2000 VA |
