2961299

Active

Phoenix Contact

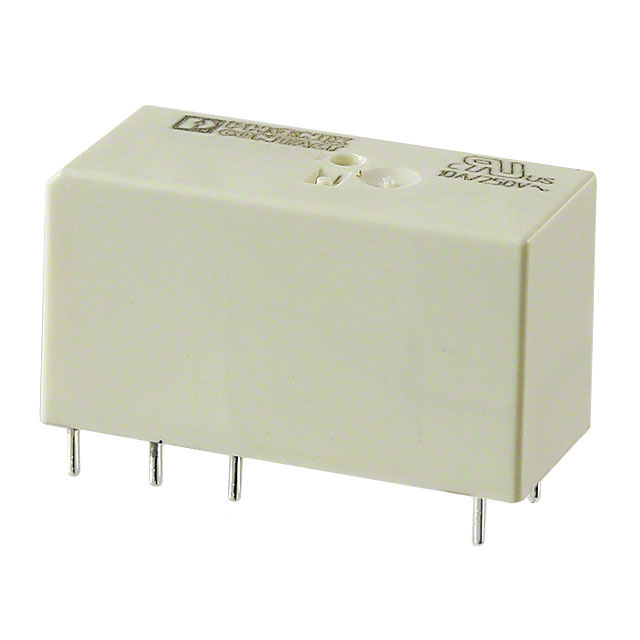

RELAY GEN PURPOSE DPDT 8A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2961299

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.71

Description

General part information

29612 Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2961299	29612 Series

Approval Agency	cULus, EAC, UR	cULus, EAC, UR, VDE, cUR
Coil Current	33 mA	4.1 - 50 mA
Coil Resistance	360 Ohms	7.34 - 1440 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 110 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C), SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi), Gold (Au), Silver (Ag)
Contact Rating (Current)	8 A	6 - 8 A
Load - Max Switching	-	1500 - 2000 VA
Mounting Type	Through Hole	Through Hole
Operate Time	7 ms	7 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	3 ms	3 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	PC Pin	PC Pin

29612 Series

RELAY GEN PURPOSE DPDT 8A 110V

Part	Coil Resistance	Coil Current	Coil Voltage	Release Time	Operate Time	Mounting Type	Relay Type	Contact Material	Contact Rating (Current)	Termination Style	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Coil Type	Approval Agency	Load - Max Switching
Phoenix Contact 2961202	26.6 kOhms	4.1 mA	110 VDC	3 ms	7 ms	Through Hole	General Purpose	Silver Nickel (AgNi)	8 A	PC Pin	DPDT (2 Form C)	85 °C	-40 °C	250 VAC, 250 VDC	Non Latching	cULus, EAC, UR
Phoenix Contact 2961299	360 Ohms	33 mA	12 VDC	3 ms	7 ms	Through Hole	General Purpose	Gold (Au), Silver Nickel (AgNi)	8 A	PC Pin	DPDT (2 Form C)	85 °C	-40 °C	250 VAC, 250 VDC	Non Latching	cULus, EAC, UR
Phoenix Contact 2961244	960 Ohms	50 mA	48 VDC			Through Hole	General Purpose	Gold (Au), Silver (Ag)	6 A	PC Pin	SPDT (1 Form C)	85 °C	-40 °C	250 VAC	Non Latching	cUR, EAC, UR, VDE	1500 VA
Phoenix Contact 2961257	360 Ohms	33 mA	12 VDC	3 ms	7 ms	Through Hole	General Purpose	Silver Nickel (AgNi)	8 A	PC Pin	DPDT (2 Form C)	85 °C	-40 °C	250 VAC, 250 VDC	Non Latching	cULus, EAC, UR
Phoenix Contact 2961228	26.6 kOhms	4.1 mA	110 VDC	3 ms	7 ms	Through Hole	General Purpose	Gold (Au), Silver Nickel (AgNi)	8 A	PC Pin	DPDT (2 Form C)	85 °C	-40 °C	250 VAC	Non Latching	cULus, EAC, UR	2000 VA
Phoenix Contact 2961215	1440 Ohms	17 mA	24 VDC	3 ms	7 ms	Through Hole	General Purpose	Gold (Au), Silver Nickel (AgNi)	8 A	PC Pin	DPDT (2 Form C)	85 °C	-40 °C	250 VAC	Non Latching	cULus, EAC, UR	2000 VA
Phoenix Contact 2961286	7.34 kOhms	8.2 mA	60 VDC	3 ms	7 ms	Through Hole	General Purpose	Gold (Au), Silver Nickel (AgNi)	8 A	PC Pin	DPDT (2 Form C)	85 °C	-40 °C	250 VAC	Non Latching	cULus, UR, VDE	2000 VA
