M80-8511842 - M80 18 Pos R/A

M80-8511842

Active
Harwin Inc.

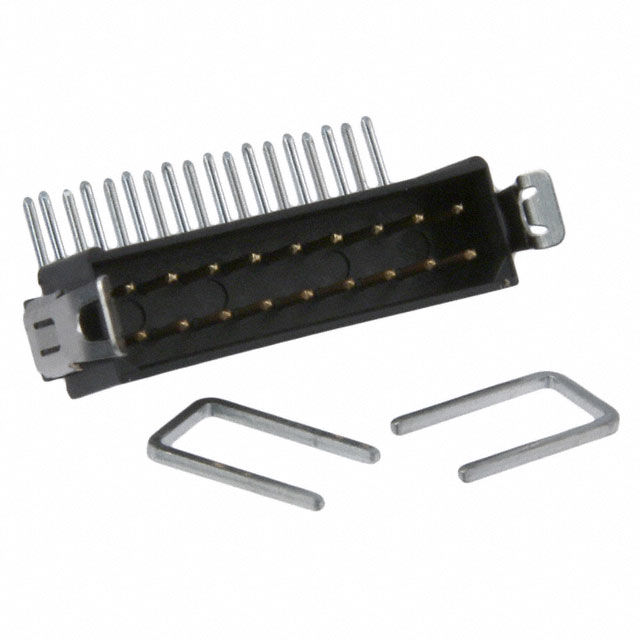

9+9 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec SheetDatasheet+2
M80-8511842 - M80 18 Pos R/A

M80-8511842

Active
Harwin Inc.

9+9 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec SheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-8511842
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating29.5 Áin
Contact Finish Thickness - Mating0.75 Ám
Contact Finish Thickness - Post3 µm
Contact Finish Thickness - Post118.1 µin
Contact Length - Post0.118 in
Contact Length - Post3 mm
Contact MaterialPhosphor Bronze
Contact ShapeCircular
Contact TypeMale Pin
Current Rating (Amps)2.2 A
Fastening TypeLatch Lock
FeaturesStrain Relief Clips
Insulation ColorBlack
Insulation Height5.97 mm
Insulation Height0.235 in
Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions18
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating800 V

M80-851 Series

PartFeaturesRow Spacing - MatingRow Spacing - MatingContact TypePitch - Mating [x]Pitch - Mating [x]TerminationContact ShapeMounting TypeShroudingInsulation ColorContact Finish - MatingInsulation HeightInsulation HeightStyleCurrent Rating (Amps)Number of Positions LoadedContact Finish Thickness - MatingContact Finish Thickness - MatingVoltage RatingNumber of RowsContact Length - PostContact Length - PostInsulation MaterialNumber of PositionsConnector TypeFastening TypeContact MaterialMaterial Flammability RatingOperating Temperature [Min]Operating Temperature [Max]Contact Finish - PostContact Finish Thickness - PostContact Finish Thickness - PostNumber of Positions
Harwin Inc.
M80-8510645
Strain Relief Clips
0.079 in
2 mm
Male Pin
0.079 in
2 mm
Solder
Circular
Through Hole
Right Angle
Shrouded - 4 Wall
Black
Gold
5.97 mm
0.235 in
Board to Board
Cable
2.2 A
All
29.5 Áin
0.75 Ám
800 V
2
0.118 in
3 mm
Polyphenylene Sulfide (PPS)
Glass Filled
6
Header
Latch Lock
Phosphor Bronze
UL94 V-0
-55 °C
125 °C
Harwin Inc.
M80-8510845
Strain Relief Clips
0.079 in
2 mm
Male Pin
0.079 in
2 mm
Solder
Circular
Through Hole
Right Angle
Shrouded - 4 Wall
Black
Gold
5.97 mm
0.235 in
Board to Board
Cable
2.2 A
All
29.5 Áin
0.75 Ám
800 V
2
0.118 in
3 mm
Polyphenylene Sulfide (PPS)
Glass Filled
8
Header
Latch Lock
Phosphor Bronze
UL94 V-0
-55 °C
125 °C
Harwin Inc.
M80-8511442
Strain Relief Clips
0.079 in
2 mm
Male Pin
0.079 in
2 mm
Solder
Circular
Through Hole
Right Angle
Shrouded - 4 Wall
Black
Gold
5.97 mm
0.235 in
Board to Board
Cable
2.2 A
All
29.5 Áin
0.75 Ám
800 V
2
0.118 in
3 mm
Polyphenylene Sulfide (PPS)
Glass Filled
14
Header
Latch Lock
Phosphor Bronze
UL94 V-0
-55 °C
125 °C
Tin
3 µm
118.1 µin
Harwin Inc.
M80-8511842
Strain Relief Clips
0.079 in
2 mm
Male Pin
0.079 in
2 mm
Solder
Circular
Through Hole
Right Angle
Shrouded - 4 Wall
Black
Gold
5.97 mm
0.235 in
Board to Board
Cable
2.2 A
All
29.5 Áin
0.75 Ám
800 V
2
0.118 in
3 mm
Polyphenylene Sulfide (PPS)
Glass Filled
18
Header
Latch Lock
Phosphor Bronze
UL94 V-0
-55 °C
125 °C
Tin
3 µm
118.1 µin
Harwin Inc.
M80-8511642
Strain Relief Clips
0.079 in
2 mm
Male Pin
0.079 in
2 mm
Solder
Circular
Through Hole
Right Angle
Shrouded - 4 Wall
Black
Gold
5.97 mm
0.235 in
Board to Board
Cable
2.2 A
All
29.5 Áin
0.75 Ám
800 V
2
0.118 in
3 mm
Polyphenylene Sulfide (PPS)
Glass Filled
Header
Latch Lock
Phosphor Bronze
UL94 V-0
-55 °C
125 °C
Tin
3 µm
118.1 µin
16
Harwin Inc.
M80-8513442
Strain Relief Clips
0.079 in
2 mm
Male Pin
0.079 in
2 mm
Solder
Circular
Through Hole
Right Angle
Shrouded - 4 Wall
Black
Gold
5.97 mm
0.235 in
Board to Board
Cable
2.2 A
All
29.5 Áin
0.75 Ám
800 V
2
0.118 in
3 mm
Polyphenylene Sulfide (PPS)
Glass Filled
34
Header
Latch Lock
Phosphor Bronze
UL94 V-0
-55 °C
125 °C
Tin
3 µm
118.1 µin
Harwin Inc.
M80-8512042
Strain Relief Clips
0.079 in
2 mm
Male Pin
0.079 in
2 mm
Solder
Circular
Through Hole
Right Angle
Shrouded - 4 Wall
Black
Gold
5.97 mm
0.235 in
Board to Board
Cable
2.2 A
All
29.5 Áin
0.75 Ám
800 V
2
0.118 in
3 mm
Polyphenylene Sulfide (PPS)
Glass Filled
20
Header
Latch Lock
Phosphor Bronze
UL94 V-0
-55 °C
125 °C
Tin
3 µm
118.1 µin
Harwin Inc.
M80-8511245
Strain Relief Clips
0.079 in
2 mm
Male Pin
0.079 in
2 mm
Solder
Circular
Through Hole
Right Angle
Shrouded - 4 Wall
Black
Gold
5.97 mm
0.235 in
Board to Board
Cable
2.2 A
All
29.5 Áin
0.75 Ám
800 V
2
0.118 in
3 mm
Polyphenylene Sulfide (PPS)
Glass Filled
12
Header
Latch Lock
Phosphor Bronze
UL94 V-0
-55 °C
125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 9.76
10$ 7.49
100$ 5.82
500$ 4.94
1000$ 4.62
NewarkEach 100$ 6.72
250$ 6.02
500$ 5.67
1000$ 4.98
2500$ 4.73

Description

General part information

M80-851 Series

Connector Header Through Hole, Right Angle 18 position 0.079" (2.00mm)
