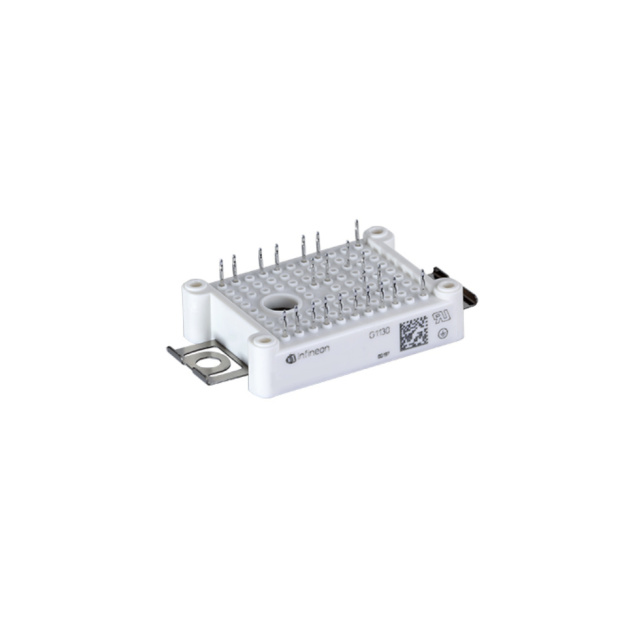

F450R07W1H3B11ABOMA1
ObsoleteInfineon Technologies
THE F4-50R07W1H3_B11A IS AN AUTOMOTIVE QUALIFIED FOURPACK IGBT HIGHSPEED 3 MODULE IN A EASYPACK™ 1B HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 650 V AND 50 A.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F450R07W1H3B11ABOMA1
ObsoleteInfineon Technologies
THE F4-50R07W1H3_B11A IS AN AUTOMOTIVE QUALIFIED FOURPACK IGBT HIGHSPEED 3 MODULE IN A EASYPACK™ 1B HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 650 V AND 50 A.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | F450R07W1H3B11ABOMA1 |
|---|---|
| Configuration | Full Bridge Inverter |
| Current - Collector (Ic) (Max) [Max] | 55 A |
| Current - Collector Cutoff (Max) [Max] | 50 µA |
| IGBT Type | Trench Field Stop |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 3.25 nF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | True |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Max [Max] | 200 W |
| Supplier Device Package | Module |
| Vce(on) (Max) @ Vge, Ic | 1.85 V |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
F450R07 Series
IGBT Module Trench Field Stop Full Bridge Inverter 650 V 55 A 200 W Chassis Mount Module
