1017008-6
ActiveTE Connectivity AMP Connectors

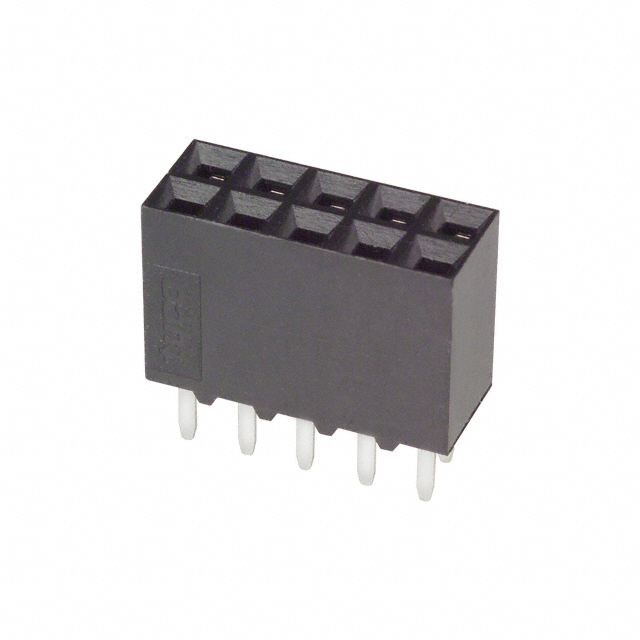

CONN RCPT 10POS 0.1 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1017008-6
ActiveTE Connectivity AMP Connectors
CONN RCPT 10POS 0.1 GOLD PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1017008-6 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám |
| Contact Length - Post | 2.92 mm |
| Contact Length - Post | 0.115 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.34 in |
| Insulation Height | 8.64 mm |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 2700 | $ 2.27 | |
1017008 Series
CONN RCPT 10POS 0.1 GOLD PCB
| Part | Contact Shape | Fastening Type | Contact Type | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Rows | Termination | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Material | Insulation Height | Insulation Height | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1017008-6 | Square | Push-Pull | Female Socket | 10 | 30 Áin | 0.76 Ám | 2.92 mm | 0.115 in | 150 Áin | 3.81 Ám | Tin-Lead | 0.1 in | 2.54 mm | 2 | Solder | Black | -55 °C | 125 °C | Through Hole | Phosphor Bronze | 0.34 in | 8.64 mm | Receptacle | 2.54 mm | 0.1 in | All | Gold |
Description
General part information
1017008 Series
10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
