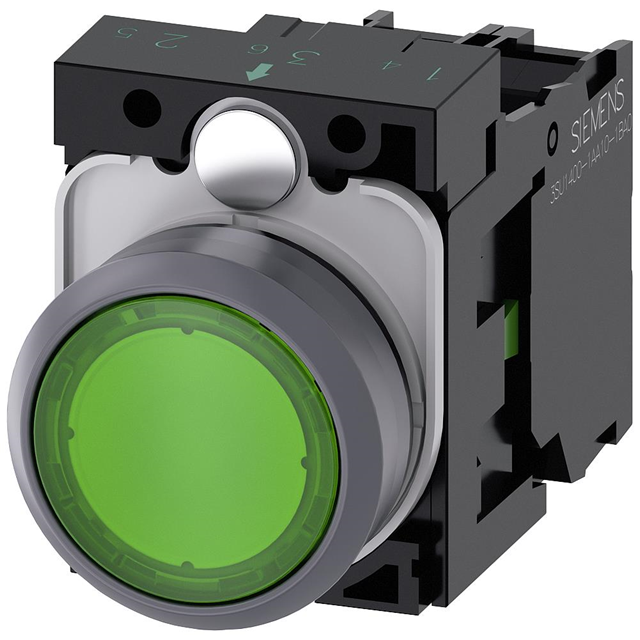

3SU11330AB401BA0

Active

Siemens

ILLUMINATED PUSHBUTTON, MOM, GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS ACT Profinet Integration WhitePaper Datasheet +1

3SU11330AB401BA0

Active

Siemens

ILLUMINATED PUSHBUTTON, MOM, GRN

Deep-Dive with AI

DocumentsSIRIUS ACT Profinet Integration WhitePaper Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SU11330AB401BA0

Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	10 A
Electrical Life	10000000 Cycles
Illumination Type, Color	LED, Green
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	3000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Illuminated, Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

3SU1133 Series

Part	Circuit	Panel Cutout Dimensions [diameter]	Mechanical Life	Color - Actuator/Cap	Mounting Type	Voltage Rating - DC	Switch Function	Termination Style	Illumination Type, Color	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - AC	Ingress Protection	Electrical Life	Type
Siemens 3SU11330AB201CA0	SPST-NC	22.3 mm	3000000 Cycles	Red	Panel Mount Front	500 V	On-Mom	Screw Terminal	LED Red	Button Round	70 °C	-25 °C	10 A	500 V	IP66 IP67 IP69K	10000000 Cycles	Illuminated Standard
Siemens 3SU11330AB601FA0	DPST-NO/NC	22.3 mm	3000000 Cycles	White	Panel Mount Front	500 V	Off-Mom On-Mom	Screw Terminal	LED White	Button Round	70 °C	-25 °C	10 A	500 V	IP66 IP67 IP69K	10000000 Cycles	Illuminated Standard
Siemens 3SU11330AB701FA0	DPST-NO/NC	22.3 mm	3000000 Cycles	Clear	Panel Mount Front	500 V	Off-Mom On-Mom	Screw Terminal	LED White	Button Round	70 °C	-25 °C	10 A	500 V	IP66 IP67 IP69K	10000000 Cycles	Illuminated Standard
Siemens 3SU11330AB401BA0	SPST-NO	22.3 mm	3000000 Cycles	Green	Panel Mount Front	500 V	Off-Mom	Screw Terminal	Green LED	Button Round	70 °C	-25 °C	10 A	500 V	IP66 IP67 IP69K	10000000 Cycles	Illuminated Standard
Siemens 3SU11330AB301FA0	DPST-NO/NC	22.3 mm	3000000 Cycles	Yellow	Panel Mount Front	500 V	Off-Mom On-Mom	Screw Terminal	LED Yellow	Button Round	70 °C	-25 °C	10 A	500 V	IP66 IP67 IP69K	10000000 Cycles	Illuminated Standard
Siemens 3SU11330AB501FA0	DPST-NO/NC	22.3 mm	3000000 Cycles	Blue	Panel Mount Front	500 V	Off-Mom On-Mom	Screw Terminal	Blue LED	Button Round	70 °C	-25 °C	10 A	500 V	IP66 IP67 IP69K	10000000 Cycles	Illuminated Standard
Siemens 3SU11330AB301BA0	SPST-NO	22.3 mm	3000000 Cycles	Yellow	Panel Mount Front	500 V	Off-Mom	Screw Terminal	LED Yellow	Button Round	70 °C	-25 °C	10 A	500 V	IP66 IP67 IP69K	10000000 Cycles	Illuminated Standard
Siemens 3SU11330AB501BA0	SPST-NO	22.3 mm	3000000 Cycles	Blue	Panel Mount Front	500 V	Off-Mom	Screw Terminal	Blue LED	Button Round	70 °C	-25 °C	10 A	500 V	IP66 IP67 IP69K	10000000 Cycles	Illuminated Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 141.88
