2ED1324S12PXUMA1

Active

Infineon Technologies

THE 2ED1324S12P IS A 1200V, 2.3 A SOURCE AND 2.3 A SINK CURRENT HALF-BRIDGE GATE DRIVER IC WITH AMC (ACTIVE MILLER CLAMP), SCC (SHORT CIRCUIT CLAMP)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2ED1324S12PXUMA1

Active

Infineon Technologies

THE 2ED1324S12P IS A 1200V, 2.3 A SOURCE AND 2.3 A SINK CURRENT HALF-BRIDGE GATE DRIVER IC WITH AMC (ACTIVE MILLER CLAMP), SCC (SHORT CIRCUIT CLAMP)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2ED1324S12PXUMA1

Channel Type	Synchronous
Current - Peak Output (Source, Sink) [custom]	2.3 A
Current - Peak Output (Source, Sink) [custom]	2.3 A
Driven Configuration	Half-Bridge
Gate Type	IGBT
High Side Voltage - Max (Bootstrap) [Max]	1200 V
Input Type	Non-Inverting
Logic Voltage - VIL, VIH	0.7 V
Mounting Type	Surface Mount
Number of Drivers	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C

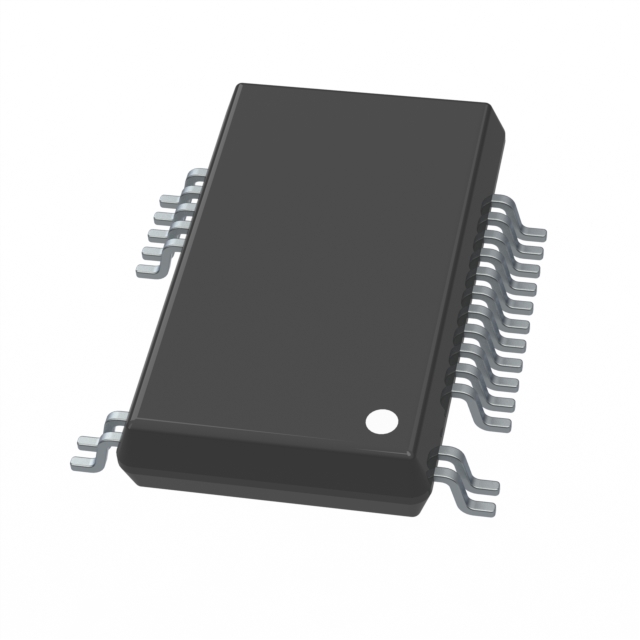

Package / Case	20-BSSOP
Rise / Fall Time (Typ) [custom]	48 ns
Rise / Fall Time (Typ) [custom]	48 ns
Supplier Device Package	PG-DSO-20-U03
Voltage - Supply [Max]	25 V
Voltage - Supply [Min]	13 V

2ED1324 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Drivers	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Supplier Device Package	Driven Configuration	Package / Case	Logic Voltage - VIL, VIH	Channel Type	Mounting Type	Gate Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	High Side Voltage - Max (Bootstrap) [Max]
Infineon Technologies 2ED1324S12PXUMA1	25 V	13 V	1	48 ns	48 ns	Non-Inverting	PG-DSO-20-U03	Half-Bridge	20-BSSOP	0.7 V	Synchronous	Surface Mount	IGBT	150 °C	-40 °C	2.3 A	2.3 A	1200 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.46
		10	$ 4.91
		25	$ 4.64
		100	$ 4.02
		250	$ 3.81
		500	$ 3.42
	Digi-Reel®	1	$ 5.46
		10	$ 4.91
		25	$ 4.64
		100	$ 4.02
		250	$ 3.81
		500	$ 3.42
	Tape & Reel (TR)	1000	$ 2.89
		2000	$ 2.74
Newark	Each (Supplied on Cut Tape)	1	$ 5.19
		10	$ 3.95
		25	$ 3.64
		50	$ 3.47
		100	$ 3.30
		250	$ 3.14
		500	$ 3.05

Description

General part information

2ED1324 Series

EiceDRIVER™ 1200 Vhalf-bridge gate driver ICwith 2.3 A source, 2.3 A sink current and cross conduction prevention in the sufficient creepage, clearance distance DSO-20 (300mils) package for 1200 VSiC MOSFETandIGBTpower devices. The 2ED1324S12P supports Active Miller Clamp (AMC), Short Circuit Clamp (SCC) and Cross conduction prevention for the best in class switching performance in the sufficient creepage/clearance distance package DSO-20. Based on the usedSOI-technologythere is an excellent ruggedness on transient voltages. Since the device contains no parasitic thyristor structures, the design is very robust against parasitic latch up across the operating temperature and voltage range.
