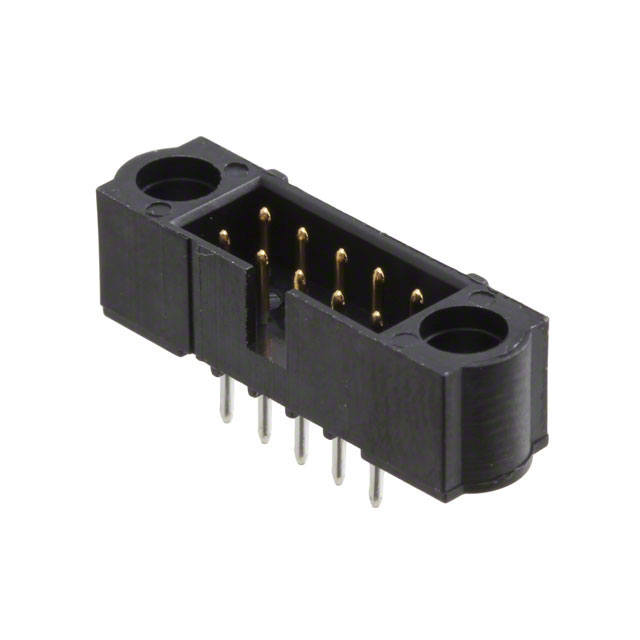

M80-5201042
ActiveHarwin Inc.
BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE, LEAD FREE
Deep-Dive with AI
Search across all available documentation for this part.
M80-5201042
ActiveHarwin Inc.
BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE, LEAD FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5201042 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Post | 0.128 " |
| Contact Length - Post | 3.25 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Fastening Type | Push-Pull |
| Features | Keying Slot, Mating Flange |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 14.75 mm, 10.75 mm, 13.35 mm, 7.3 mm, 7.7 mm, 9.75 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 120 VDC |
M80-520 Series
| Part | Pitch - Mating [x] | Pitch - Mating [x] | Style | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Contact Shape | Insulation Material | Contact Finish - Mating | Number of Rows | Voltage Rating | Material Flammability Rating | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Features | Number of Positions | Contact Type | Mated Stacking Heights | Connector Type | Termination | Contact Finish - Post | Insulation Color | Current Rating (Amps) | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Finish Thickness - Post | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 0.079 in | 2 mm | Board to Cable/Wire | -55 °C | 125 °C | Shrouded - 4 Wall | 0.079 in | 2 mm | 0.128 " | 3.25 mm | 29.5 µin | 0.75 µm | Through Hole | Circular | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 2 | 800 VAC | UL94 V-0 | Push-Pull | 29.5 Áin | 0.75 Ám | Phosphor Bronze | Keying Slot Mating Flange | 14 | Male Pin | 7.3 mm 7.8 mm | Header | Solder | Gold | Black | 2.2 A | 5.6 mm | 0.22 in | All | |||
Harwin Inc. | 0.079 in | 2 mm | Board to Board Cable | -55 °C | 125 °C | Shrouded - 4 Wall | 0.079 in | 2 mm | 0.128 " | 3.25 mm | 3 µm | Through Hole | Circular | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 2 | 120 VDC | UL94 V-0 | Push-Pull | 29.5 Áin | 0.75 Ám | Phosphor Bronze | Keying Slot Mating Flange | 6 | Male Pin | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | Solder | Tin | Black | 2.2 A | 5.6 mm | 0.22 in | All | 118.1 µin | |||
Harwin Inc. | 0.079 in | 2 mm | Board to Board Cable | -55 °C | 125 °C | Shrouded - 4 Wall | 0.079 in | 2 mm | 0.128 " | 3.25 mm | 0.3 µm | Through Hole | Circular | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 2 | 800 VAC | UL94 V-0 | Push-Pull | 29.5 Áin | 0.75 Ám | Phosphor Bronze | Keying Slot Mating Flange | 4 | Male Pin | 7.3 mm 7.8 mm | Header | Solder | Tin | Black | 2.2 A | 5.6 mm | 0.22 in | All | 12 µin | 8.85 mm | 0.348 in | |
Harwin Inc. | 0.079 in | 2 mm | Board to Board Cable | -55 °C | 125 °C | Shrouded - 4 Wall | 0.079 in | 2 mm | 0.128 " | 3.25 mm | 3 µm | Through Hole | Circular | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 2 | 120 VDC | UL94 V-0 | Push-Pull | 29.5 Áin | 0.75 Ám | Phosphor Bronze | Keying Slot Mating Flange | 50 | Male Pin | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | Solder | Tin | Black | 2.2 A | 5.6 mm | 0.22 in | All | 118.1 µin | |||
Harwin Inc. | 0.079 in | 2 mm | Board to Board Cable | -55 °C | 125 °C | Shrouded - 4 Wall | 0.079 in | 2 mm | 0.128 " | 3.25 mm | 29.5 µin | 0.75 µm | Through Hole | Circular | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 2 | 800 VAC | UL94 V-0 | Push-Pull | 29.5 Áin | 0.75 Ám | Phosphor Bronze | Keying Slot Mating Flange | 6 | Male Pin | 7.3 mm 7.8 mm | Header | Solder | Gold | Black | 2.2 A | 5.6 mm | 0.22 in | All | 8.85 mm | 0.348 in | |
Harwin Inc. | 0.079 in | 2 mm | Board to Board Cable | -55 °C | 125 °C | Shrouded - 4 Wall | 0.079 in | 2 mm | 0.128 " | 3.25 mm | 29.5 µin | 0.75 µm | Through Hole | Circular | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 2 | 800 VAC | UL94 V-0 | Push-Pull | 29.5 Áin | 0.75 Ám | Phosphor Bronze | Keying Slot Mating Flange | 12 | Male Pin | 7.3 mm 7.8 mm | Header | Solder | Gold | Black | 2.2 A | 5.6 mm | 0.22 in | All | 8.85 mm | 0.348 in | |
Harwin Inc. | 0.079 in | 2 mm | Board to Board Cable | -55 °C | 125 °C | Shrouded - 4 Wall | 0.079 in | 2 mm | 0.128 " | 3.25 mm | 29.5 µin | 0.75 µm | Through Hole | Circular | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 2 | 800 VAC | UL94 V-0 | Push-Pull | 29.5 Áin | 0.75 Ám | Phosphor Bronze | Keying Slot Mating Flange | 20 | Male Pin | 7.3 mm 7.8 mm | Header | Solder | Gold | Black | 2.2 A | 5.6 mm | 0.22 in | All | |||
Harwin Inc. | 0.079 in | 2 mm | Board to Board Cable | -55 °C | 125 °C | Shrouded - 4 Wall | 0.079 in | 2 mm | 0.128 " | 3.25 mm | 3 µm | Through Hole | Circular | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 2 | 120 VDC | UL94 V-0 | Push-Pull | 29.5 Áin | 0.75 Ám | Phosphor Bronze | Keying Slot Mating Flange | 10 | Male Pin | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | Solder | Tin | Black | 2.2 A | 5.6 mm | 0.22 in | All | 118.1 µin | |||
Harwin Inc. | 0.079 in | 2 mm | Board to Board Cable | -55 °C | 125 °C | Shrouded - 4 Wall | 0.079 in | 2 mm | 0.128 " | 3.25 mm | 0.3 µm | Through Hole | Circular | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 2 | 800 VAC | UL94 V-0 | Push-Pull | 29.5 Áin | 0.75 Ám | Phosphor Bronze | Keying Slot Mating Flange | 8 | Male Pin | 7.3 mm 7.8 mm | Header | Solder | Tin-Lead | Black | 2.2 A | 5.6 mm | 0.22 in | All | 12 µin | |||
Harwin Inc. | 0.079 in | 2 mm | Board to Board Cable | -55 °C | 125 °C | Shrouded - 4 Wall | 0.079 in | 2 mm | 0.128 " | 3.25 mm | 29.5 µin | 0.75 µm | Through Hole | Circular | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 2 | 800 VAC | UL94 V-0 | Push-Pull | 29.5 Áin | 0.75 Ám | Phosphor Bronze | Keying Slot Mating Flange | 18 | Male Pin | 7.3 mm 7.8 mm | Header | Solder | Gold | Black | 2.2 A | 5.6 mm | 0.22 in | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.86 | |
| 10 | $ 6.79 | |||
| 100 | $ 5.28 | |||
| 500 | $ 4.48 | |||
| 1000 | $ 4.19 | |||
Description
General part information
M80-520 Series
Connector Header Through Hole 10 position 0.079" (2.00mm)
