657-1415-303F
ActiveDIALIGHT
PMI, FLAT, RG, 10-30VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
657-1415-303F
ActiveDIALIGHT
PMI, FLAT, RG, 10-30VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 657-1415-303F | 657-14 Series |
|---|---|---|
| Ingress Protection | NEMA 4X, IP67 | NEMA 4X, IP67 |
| Lamp Color | Green, Red | Green, Yellow, Red, Blue |
| Lens Color | White | White |
| Lens Size [diameter] | 16.5 mm Dia | 16.5 mm Dia |
| Lens Transparency | Diffused | Diffused |
| Millicandela Rating | 515 mcd, 270 mcd | 90 - 515 mcd |
| Millicandela Rating | - | 90 mcd |
| Millicandela Rating | - | 270 mcd |
| Millicandela Rating | - | 515 mcd |
| Panel Cutout Dimensions | 17.46 mm | 17.46 mm |
| Panel Cutout Dimensions | 0.69 in | 0.69 in |
| Panel Cutout Shape | Round | Round |
| Ratings | DC | DC |
| Type | LED | LED |
| Voltage [Max] | 30 V | 30 V |
| Voltage [Min] | 10 V | 10 V |
657-14 Series
PMI, FLAT, GRY, 10-30VDC
| Part | Ingress Protection | Panel Cutout Shape | Voltage [Max] | Voltage [Min] | Panel Cutout Dimensions | Panel Cutout Dimensions | Lamp Color | Type | Lens Size [diameter] | Lens Color | Ratings | Lens Transparency | Millicandela Rating | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIALIGHT 657-1495-303F | IP67, NEMA 4X | Round | 30 V | 10 V | 17.46 mm | 0.69 in | Green, Red, Yellow | LED | 16.5 mm Dia | White | DC | Diffused | 270 mcd, 310 mcd, 515 mcd | |||
DIALIGHT 657-1485-303F | IP67, NEMA 4X | Round | 30 V | 10 V | 17.46 mm | 0.69 in | Blue, Green, Red | LED | 16.5 mm Dia | White | DC | Diffused | 90 mcd | 270 mcd | 515 mcd | |
DIALIGHT 657-1415-303F | IP67, NEMA 4X | Round | 30 V | 10 V | 17.46 mm | 0.69 in | Green, Red | LED | 16.5 mm Dia | White | DC | Diffused | 270 mcd, 515 mcd | |||
DIALIGHT 657-1435-303F | IP67, NEMA 4X | Round | 30 V | 10 V | 17.46 mm | 0.69 in | Green, Yellow | LED | 16.5 mm Dia | White | DC | Diffused | 310 mcd, 515 mcd | |||
DIALIGHT 657-1465-303F | IP67, NEMA 4X | Round | 30 V | 10 V | 17.46 mm | 0.69 in | Blue, Green | LED | 16.5 mm Dia | White | DC | Diffused | 90 mcd, 515 mcd | |||
DIALIGHT 657-1425-303F | IP67, NEMA 4X | Round | 30 V | 10 V | 17.46 mm | 0.69 in | Blue, Red | LED | 16.5 mm Dia | White | DC | Diffused | 90 mcd, 270 mcd |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 23.60 | |
| 10 | $ 18.32 | |||
| 100 | $ 15.59 | |||
| 500 | $ 14.78 | |||
Description
General part information
657-14 Series

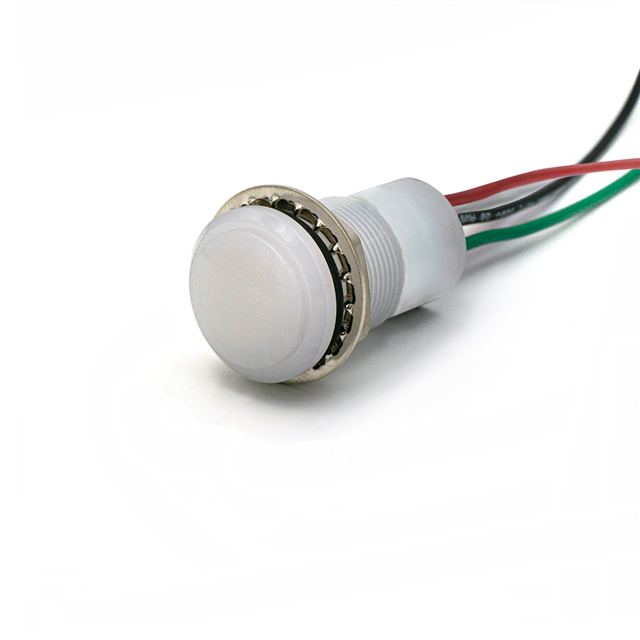

LED Panel Indicator Green, Red Diffused 10V ~ 30V 20mA Wire Leads - 6" (152.40mm)
