657-1435-303F

Active

DIALIGHT

MULTICOLOUR PANEL INDICATORS, GREEN, YELLOW, 0.687 ", G 20MA, Y 20MA, G 30V, Y 30V

Search across all available documentation for this part.

Active

DIALIGHT

MULTICOLOUR PANEL INDICATORS, GREEN, YELLOW, 0.687 ", G 20MA, Y 20MA, G 30V, Y 30V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

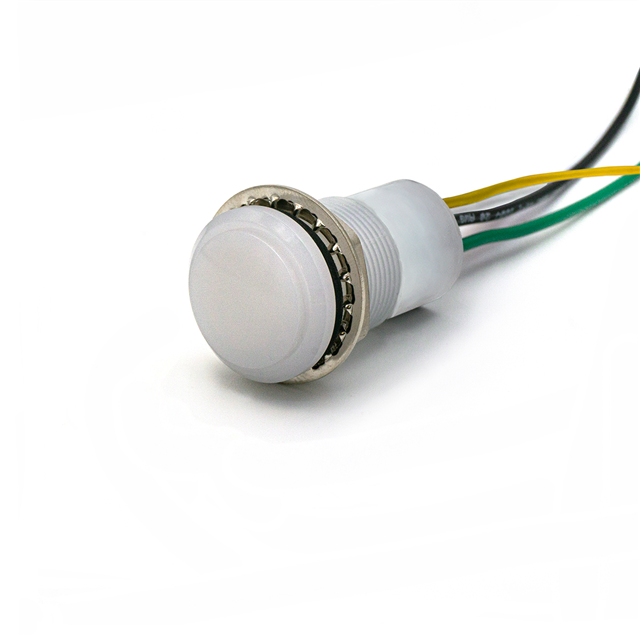

LED Panel Indicator Green, Yellow Diffused 10V ~ 30V 20mA Wire Leads - 6" (152.40mm)

Part	Ingress Protection	Panel Cutout Shape	Voltage [Max]	Voltage [Min]	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Type	Lens Size [diameter]	Lens Color	Ratings	Lens Transparency	Millicandela Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
DIALIGHT 657-1495-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Green, Red, Yellow	LED	16.5 mm Dia	White	DC	Diffused	270 mcd, 310 mcd, 515 mcd
DIALIGHT 657-1485-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Blue, Green, Red	LED	16.5 mm Dia	White	DC	Diffused		90 mcd	270 mcd	515 mcd
DIALIGHT 657-1415-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Green, Red	LED	16.5 mm Dia	White	DC	Diffused	270 mcd, 515 mcd
DIALIGHT 657-1435-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Green, Yellow	LED	16.5 mm Dia	White	DC	Diffused	310 mcd, 515 mcd
DIALIGHT 657-1465-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Blue, Green	LED	16.5 mm Dia	White	DC	Diffused	90 mcd, 515 mcd
DIALIGHT 657-1425-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Blue, Red	LED	16.5 mm Dia	White	DC	Diffused	90 mcd, 270 mcd
