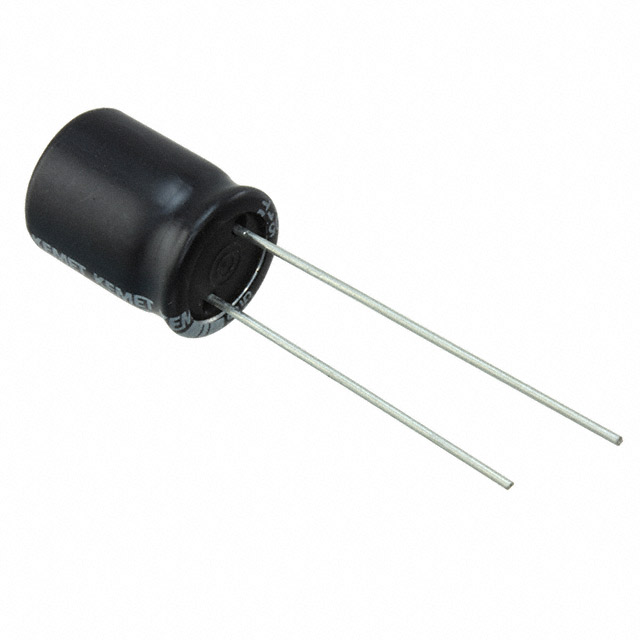

ESL476M100AH9AA

Active

KEMET

CAP ALUMINUM LYTIC 47UF 100V 20% (10 X 12.5MM) RADIAL 5MM 0.32 OHM 0.51A 10000H 105°C BAG

Search across all available documentation for this part.

Active

KEMET

CAP ALUMINUM LYTIC 47UF 100V 20% (10 X 12.5MM) RADIAL 5MM 0.32 OHM 0.51A 10000H 105°C BAG

Technical Specifications

Parameters and characteristics for this part

Specification	ESL476M100AH9AA

Applications	General Purpose
Capacitance	47 µF
ESR (Equivalent Series Resistance)	320 mOhm
Height - Seated (Max)	14 mm
Height - Seated (Max) [Max]	0.551 "
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	510 mA
Ripple Current @ Low Frequency	255 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	100 V

Part	Capacitance	ESR (Equivalent Series Resistance)	Package / Case	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Applications	Ripple Current @ High Frequency	Height - Seated (Max)	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Voltage - Rated
KEMET ESL476M100AH9AA	47 µF	320 mOhm	Radial Can	Polar	-40 °C	105 ░C	20 %	Through Hole	10 mm	0.394 in	10000 Hrs	General Purpose	510 mA	14 mm	0.551 "	255 mA	5 mm	0.197 in	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 320mOhm @ 100kHz 10000 Hrs @ 105°C
