VND7NV0413TR
ActiveSTMicroelectronics

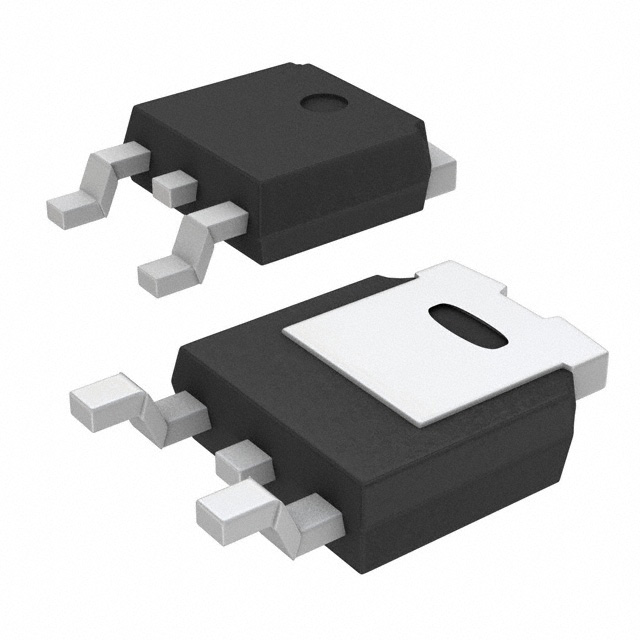

IC PWR DRIVER N-CHANNEL 1:1 DPAK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VND7NV0413TR
ActiveSTMicroelectronics
IC PWR DRIVER N-CHANNEL 1:1 DPAK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VND7NV0413TR | VND7NV04 Series |
|---|---|---|
| - | - | |
| Current - Output (Max) [Max] | 6 A | 4 - 6 A |
| Fault Protection | Over Temperature, Current Limiting (Fixed), Over Voltage | Over Temperature, Current Limiting (Fixed), Over Voltage |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off |
| Mounting Type | Surface Mount | Through Hole, Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 | IPAK, TO-251-3 Short Leads, TO-251AA, SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 60 mOhm | 60 - 140 mOhm |
| Supplier Device Package | DPAK | IPAK, DPAK |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load | 36 V | 36 V |
| Voltage - Load | - | 31 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VND7NV04 Series
IC PWR DRIVER N-CHANNEL 1:1 IPAK
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Fault Protection | Supplier Device Package | Mounting Type | Switch Type | Output Configuration | Ratio - Input:Output [custom] | Voltage - Load [Max] | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) [Max] | Number of Outputs | Rds On (Typ) | Interface | Output Type | Input Type | Package / Case | Voltage - Load |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VND7N04-1 | 150 °C | -40 °C | Current Limiting (Fixed), Over Temperature, Over Voltage | IPAK | Through Hole | General Purpose | Low Side | 1:1 | 31 V | 4 A | 1 | 140 mOhm | On/Off | N-Channel | Non-Inverting | IPAK, TO-251-3 Short Leads, TO-251AA | ||
STMicroelectronics VND7NV04TR-E | ||||||||||||||||||
STMicroelectronics VND7NV04TR-E | ||||||||||||||||||
STMicroelectronics VND7NV04-1 | 150 °C | -40 °C | Current Limiting (Fixed), Over Temperature, Over Voltage | IPAK | Through Hole | General Purpose | Low Side | 1:1 | 6 A | 1 | 60 mOhm | On/Off | N-Channel | Non-Inverting | IPAK, TO-251-3 Short Leads, TO-251AA | 36 V | ||
STMicroelectronics VND7NV0413TR | 150 °C | -40 °C | Current Limiting (Fixed), Over Temperature, Over Voltage | DPAK | Surface Mount | General Purpose | Low Side | 1:1 | 6 A | 1 | 60 mOhm | On/Off | N-Channel | Non-Inverting | DPAK (2 Leads + Tab), SC-63, TO-252-3 | 36 V | ||
STMicroelectronics VND7NV04TR-E |
Description
General part information
VND7NV04 Series
Power Switch/Driver 1:1 N-Channel 6A DPAK
